Transfer Case Control Schematics



Transfer Case Control Schematics

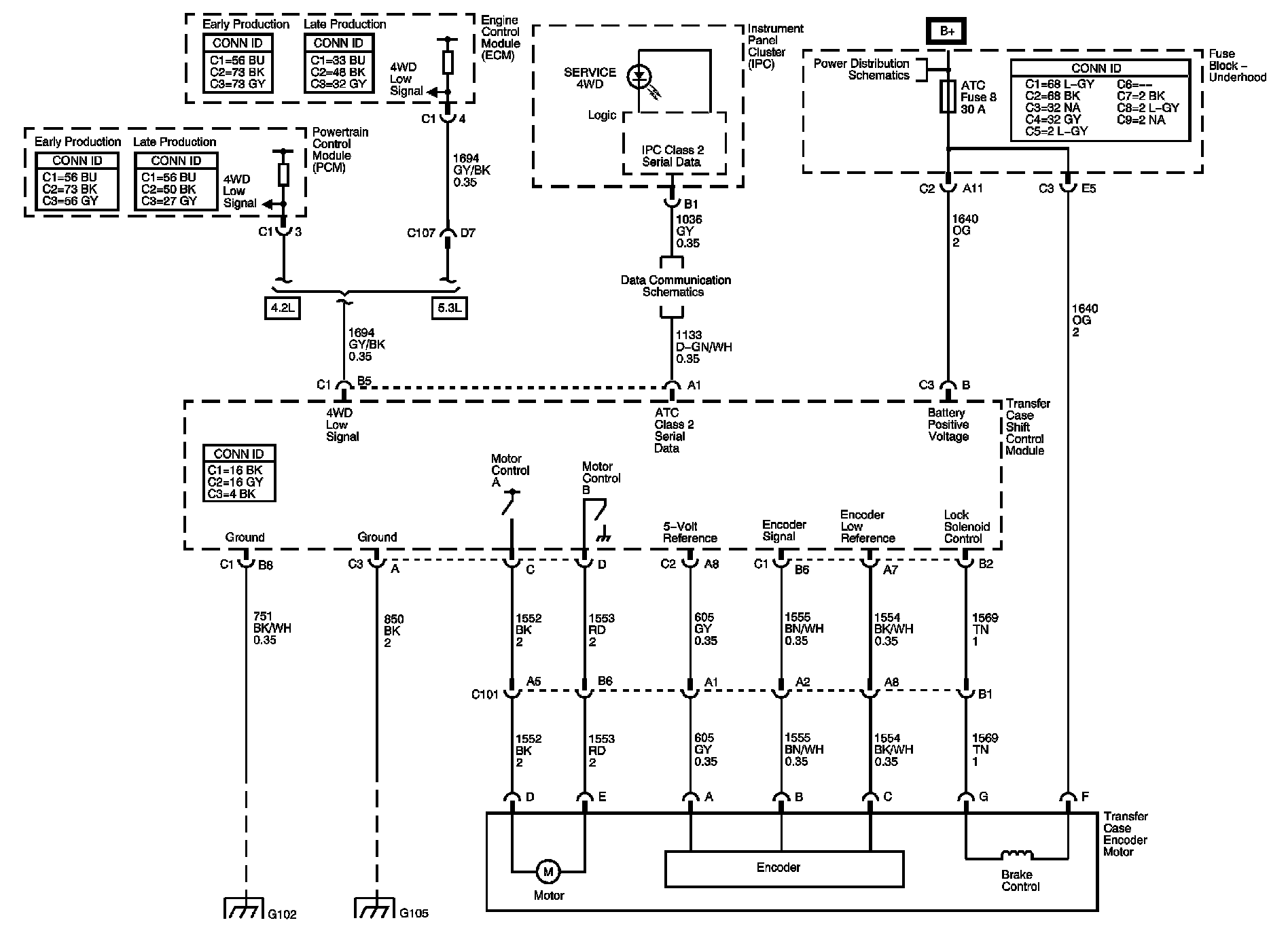

Power, Ground, Serial Data, and Transfer Case Encoder Motor

Transfer Case Control Schematics 1:

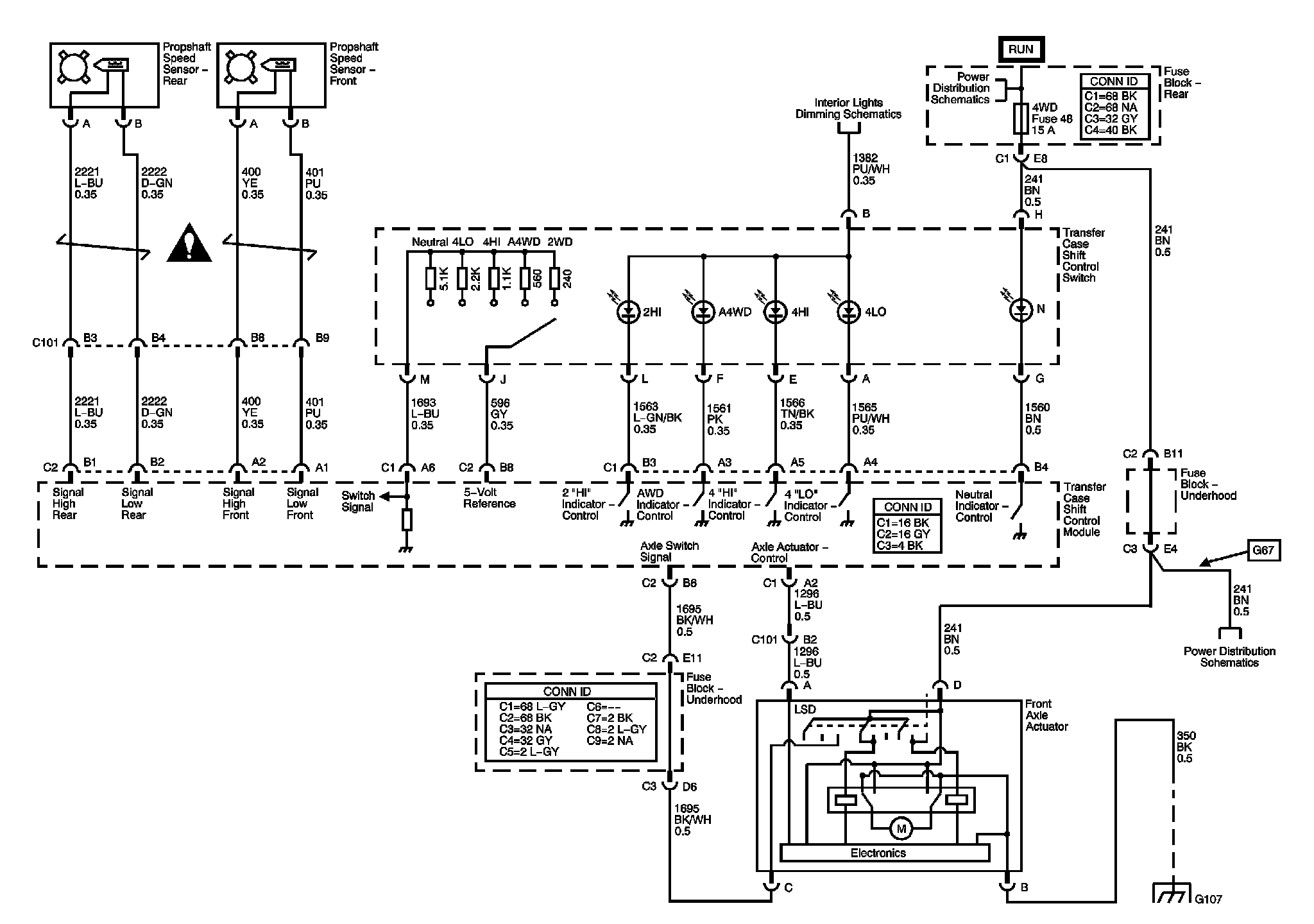

Speed Signal, Front Axle Actuator and Indicators

Transfer Case Control Schematics 2:
