Transfer Case Actuator
>>
NVG 226-NP8 - Transfer Case
>>
Front Axle Actuator
Front Axle Actuator
Front Axle Actuator

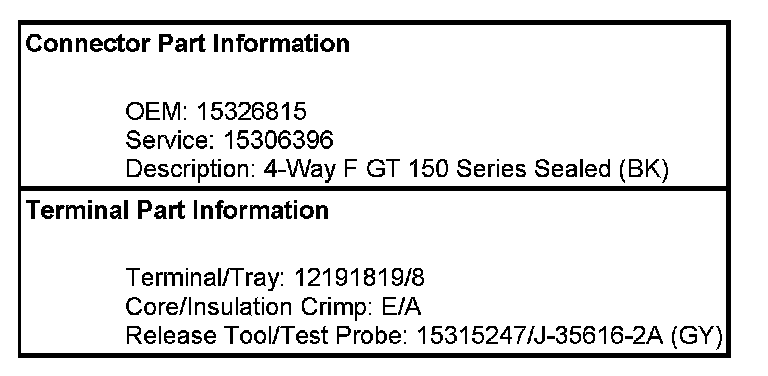

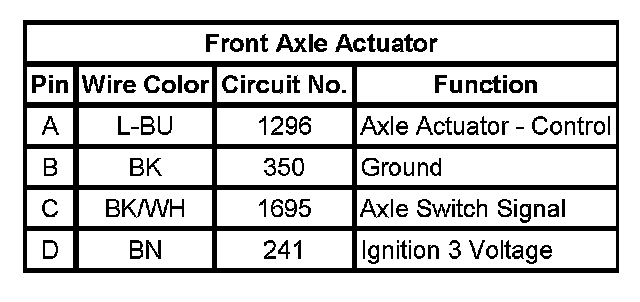

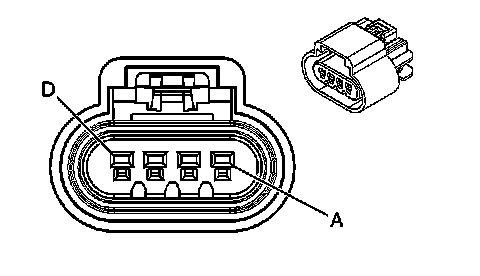

Front Axle Actuator:
