Chevy Truck
>>
2007
>>
TrailBlazer 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>
NVG 126-NP4 - Transfer Case
>>
Transfer Case Shift Control Module C1
Transfer Case Shift Control Module C1
Transfer Case Shift Control Module C1

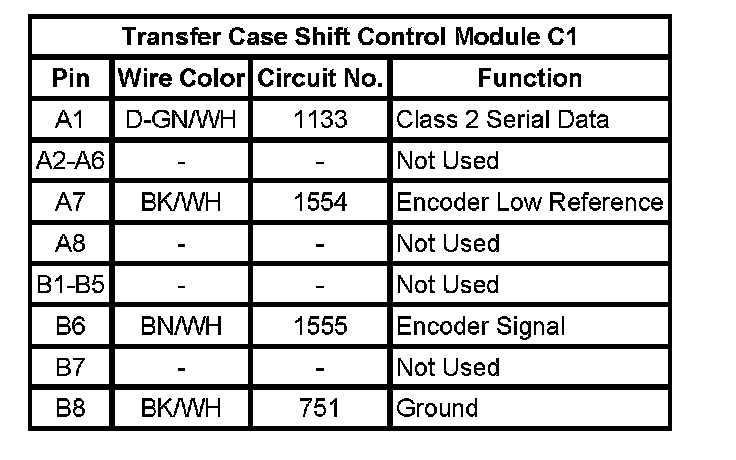

Transfer Case Shift Control Module - C1:
Transfer Case Shift Control Module C1:
