Vehicle Speed Sensor Assembly, Wiring Harness Side
Vehicle Speed Sensor Assembly, Wiring Harness Side
Vehicle Speed Sensor
Assembly, Wiring Harness Side

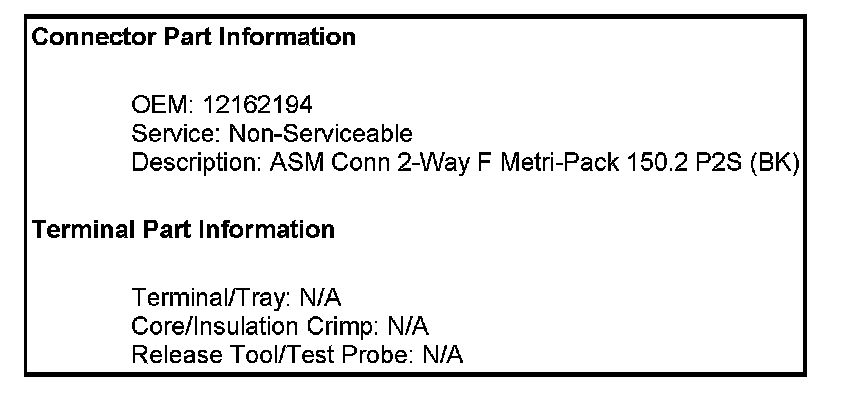

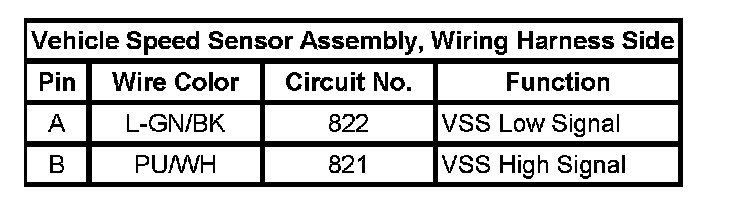

Vehicle Speed Sensor Assembly, Wiring Harness Side:
