Upper Ball Joint Replacement

Upper Ball Joint Replacement

Tools Required
^ J 9519-E Lower Ball Joint Remover and Installer
^ J 21474-01 Control Arm Bushing Set
^ J 45117 Ball Joint Installation Spacer

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation.
3. Remove the steering knuckle with wheel hub attached. Refer to Steering Knuckle Replacement (4WD).

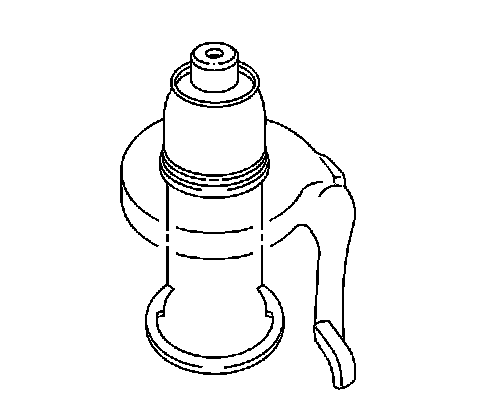

4. Remove the upper ball joint retaining clip.




5. Remove the upper ball joint boot.

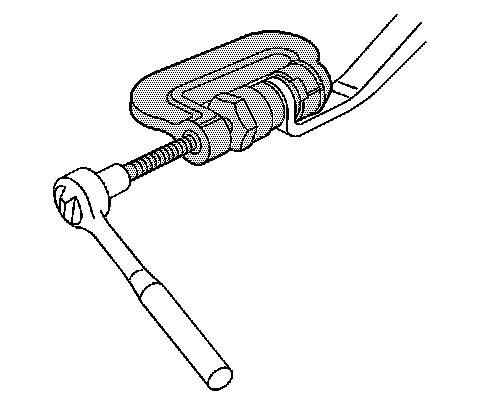

6. Remove the upper ball joint from the steering knuckle using J 9519-E.

Installation Procedure

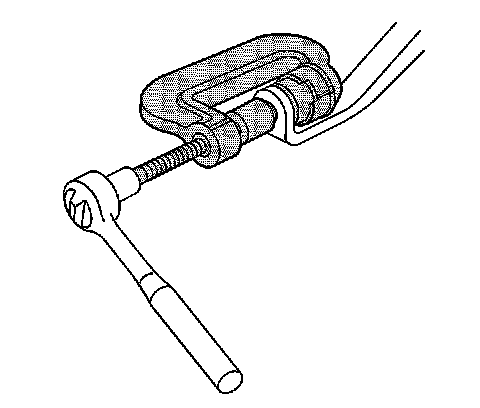

1. Install the upper ball joint to steering knuckle using J 9519-E, J 21474-01, and J 45117.




2. Install the upper ball joint retaining clip.
3. Install the steering knuckle with wheel hub attached. Refer to Steering Knuckle Replacement (4WD).
4. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation.
5. Lower the vehicle.
6. Check the front wheel alignment. Refer to Wheel Alignment Specifications.
