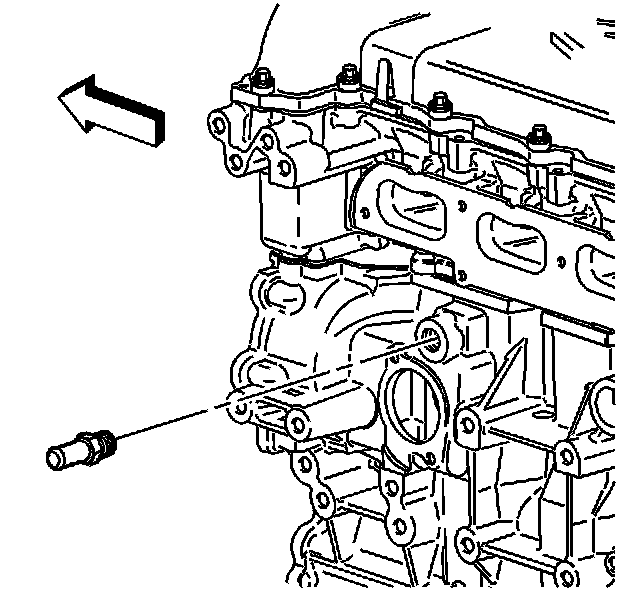

83. Heater Outlet Hose Fitting Installation

Heater Outlet Hose Fitting Installation




1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the heater outlet hose fitting threads.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the heater outlet hose fitting.

Tighten the heater outlet hose fitting to 45 N.m (33 lb ft).
