Engine Mount and Bracket Replacement - Left

Engine Mount and Bracket Replacement - Left Side

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.




2. Remove the cooling fan. Refer to Cooling Fan and Shroud Replacement.




3. Remove the manifold absolute pressure (MAP) sensor electrical connector and the retainer (1).
4. Remove the MAP sensor (2).
5. Remove the left shock module, if frame mount is being removed. Refer to Shock Module Replacement.




6. Remove the right and the left upper engine mount nuts (1).
7. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
8. Remove the right and the left lower engine mount nuts.
9. Remove the engine protection shield. Refer to Engine Protection Shield Replacement.

Important: When placing jack onto the oil pan, pay close attention to not damage the oil level sender.

10. Lower the vehicle and place a floor jack under the oil pan with a block of wood.
11. Raise the engine with the jack just enough to clear the engine mount stud.




12. Remove the left engine mount from the bracket.

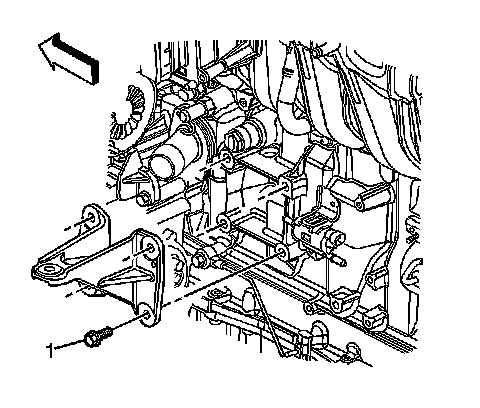

13. Remove the left engine mount bracket bolts (1).
14. Remove the left engine mount bracket.

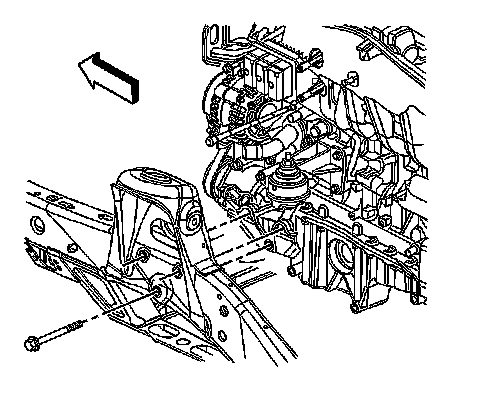

15. Remove the left frame engine mount bracket bolts.
16. Remove the left frame engine mount bracket, if required.

Installation Procedure




1. Install the left frame engine mount bracket, if removed.

Notice: Refer to Fastener Notice.

2. Install the left frame engine mount bracket bolts, if removed.

Tighten the mount bracket bolts to 110 N.m (81 lb ft).




3. Install the left engine mount bracket and secure the bracket with the bolts (1).

Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).




4. Install the left engine mount onto the bracket.
5. Lower the engine onto the engine mounts.
6. Install the right and the left upper engine mount nuts (1).

Tighten the upper engine mount nuts to 70 N.m (52 lb ft).

7. Raise the vehicle and remove the jack from under the vehicle.
8. Install the engine protection shield and secure the shield with the bolts. Refer to Engine Protection Shield Replacement.
9. Install the right and the left lower engine mount nuts.

Torque the lower engine mount nuts to 70 N.m (52 lb ft).

10. Lower the vehicle.
11. Install the left shock module. Refer to Shock Module Replacement.




12. Install the MAP sensor (2).
13. Install the MAP sensor retainer (1) and the electrical connector.




14. Connect the cooling fan hub nut to the water pump shaft.
15. Install the cooling fan. Refer to Cooling Fan and Shroud Replacement.
16. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
