Chevy Truck
>>
2007
>>
TrailBlazer 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
C300 - C399
>>
C317
C317

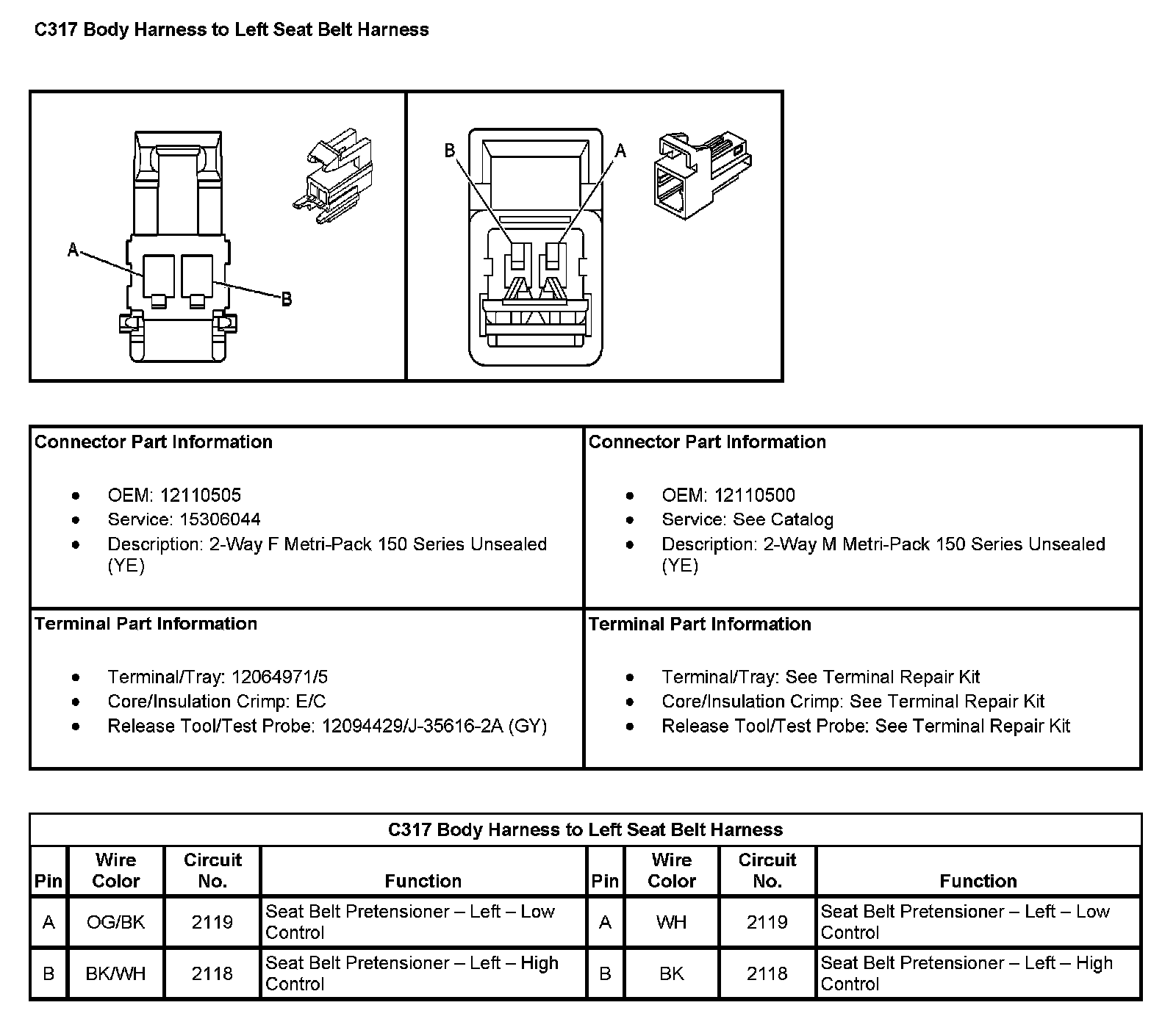

C317 Body Harness To Left Seat Belt Harness:
