Chevy Truck
>>
2007
>>
TrailBlazer 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
C200 - C299
>>
C275
C275

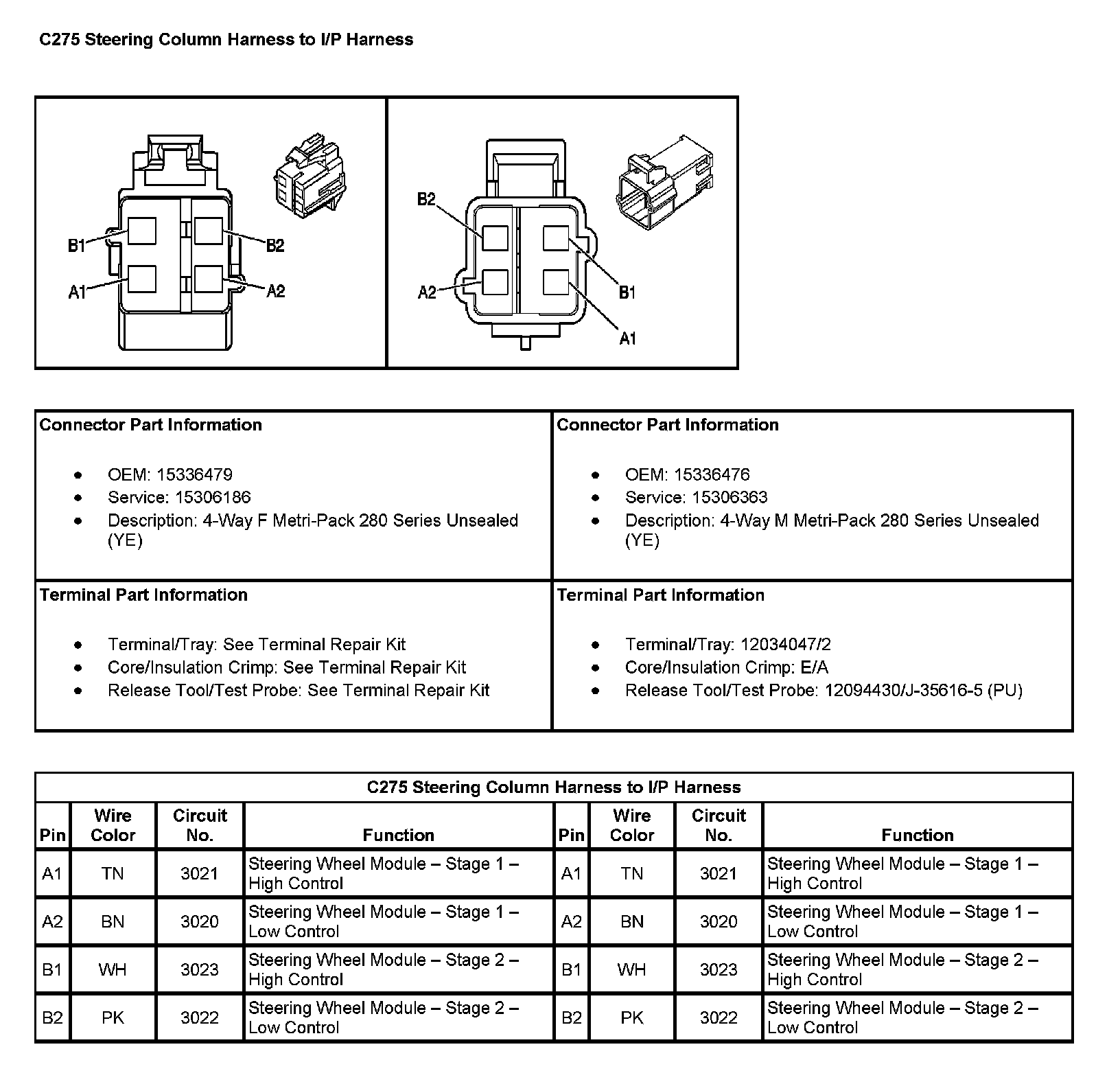

C275 Steering Column Harness To I/P Harness:
