Seat Horizontal Motor

Seat Horizontal Motor - Driver (With RPO Code AR9):

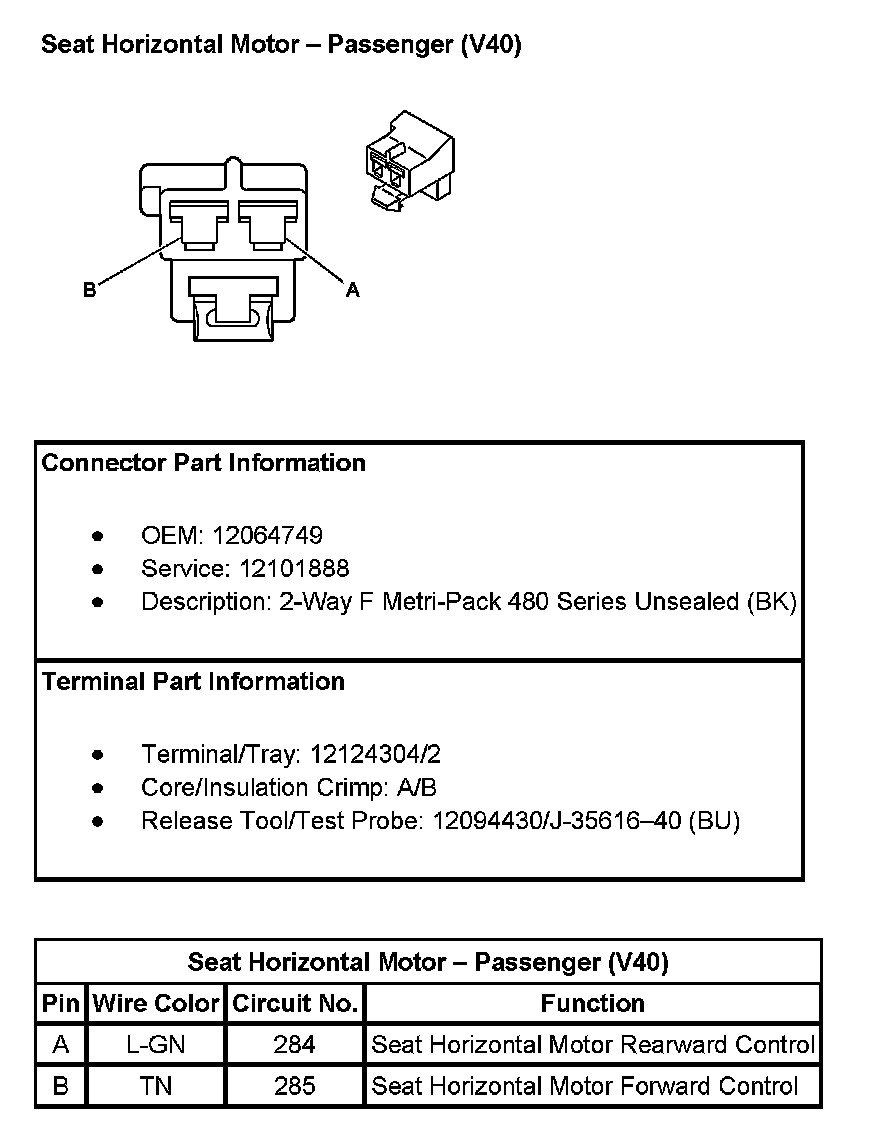

Seat Horizontal Motor - Passenger (With RPO Code V40):
