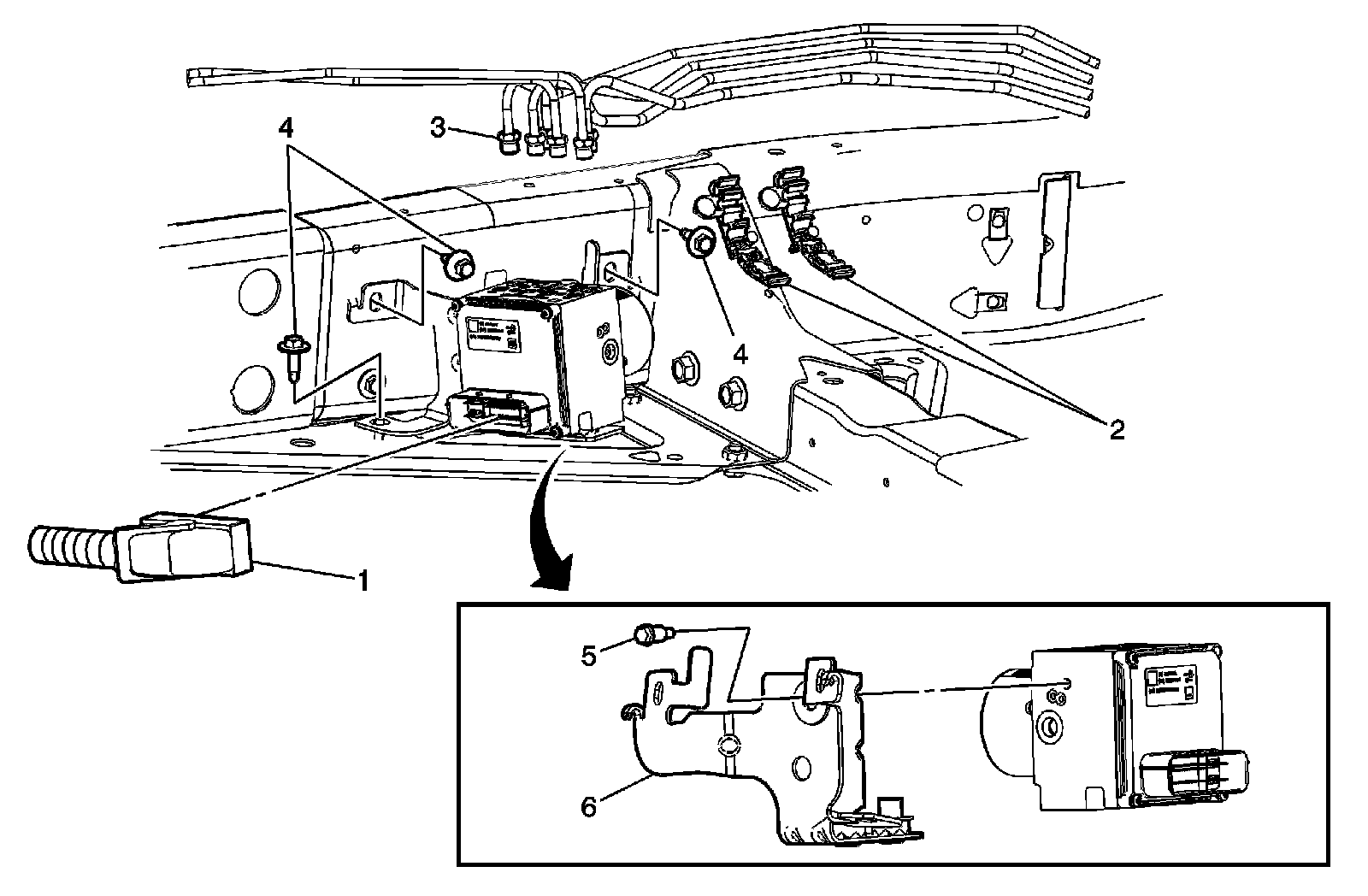

Brake Pressure Modulator Valve Bracket Replacement



Brake Pressure Modulator Valve Bracket Replacement

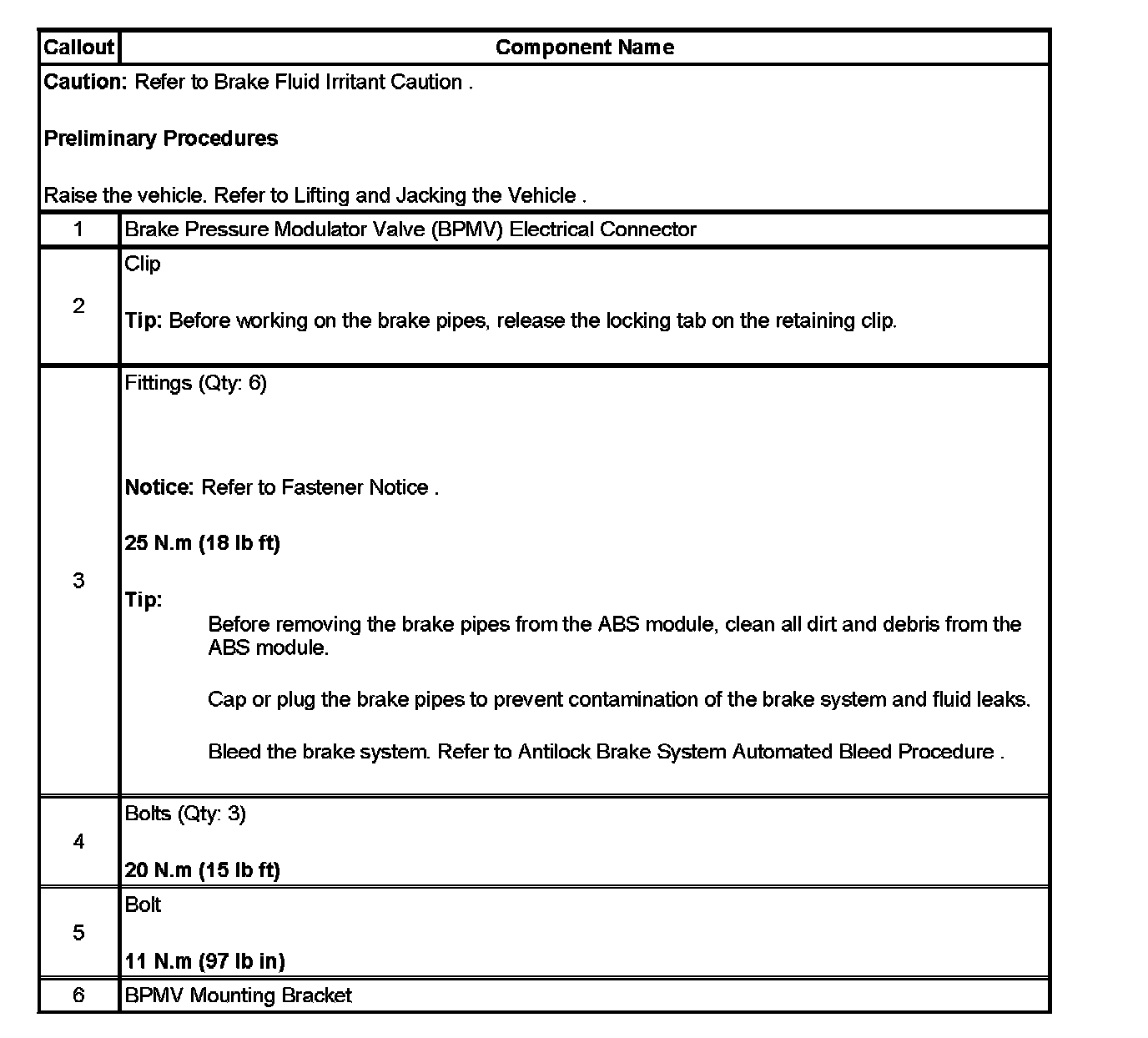

Step 1 - Step 6:





Preliminary ProceduresRaise the vehicle. Refer to Lifting and Jacking the Vehicle.
