Glove Compartment: Service and Repair

Instrument Panel Compartment Door Replacement

Removal Procedure




1. Remove the right closeout/insulator panel.

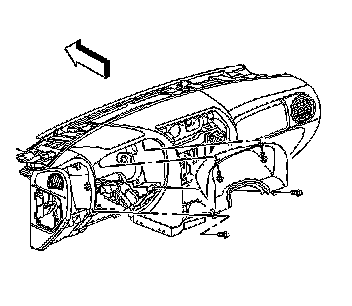

2. Remove the 3 storage compartment retaining screws.
3. Remove the storage compartment from the instrument panel (I/P).

Installation Procedure




1. Position the storage compartment to the I/P.

Notice: Refer to Fastener Notice.

2. Install the 3 screws.

Tighten the screws to 2.5 N.m (22 lb in).

3. Install the right closeout/insulator panel.
