Front Upper Speaker Replacement

Front Upper Speaker Replacement

Removal Procedure




1. Remove the trim pad.






Important: Ensure that the speaker electrical connector does not fall into the speaker opening.

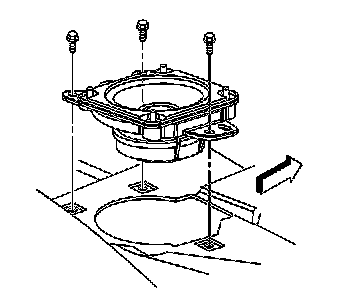

2. Remove the 3 screws that retain the speaker to the instrument panel (I/P) substrate.
3. Disconnect the speaker electrical connector.
4. Remove the speaker from the I/P.

Installation Procedure




1. Install the speaker to the I/P.
2. Connect the speaker electrical connector.

Notice: Refer to Fastener Notice.

3. Install the 3 speaker retaining screws.

Tighten the screws to 2 N.m (18 lb in).




4. Install the trim pad.
