Adjustable Pedals Inoperative



ADJUSTABLE PEDALS INOPERATIVE

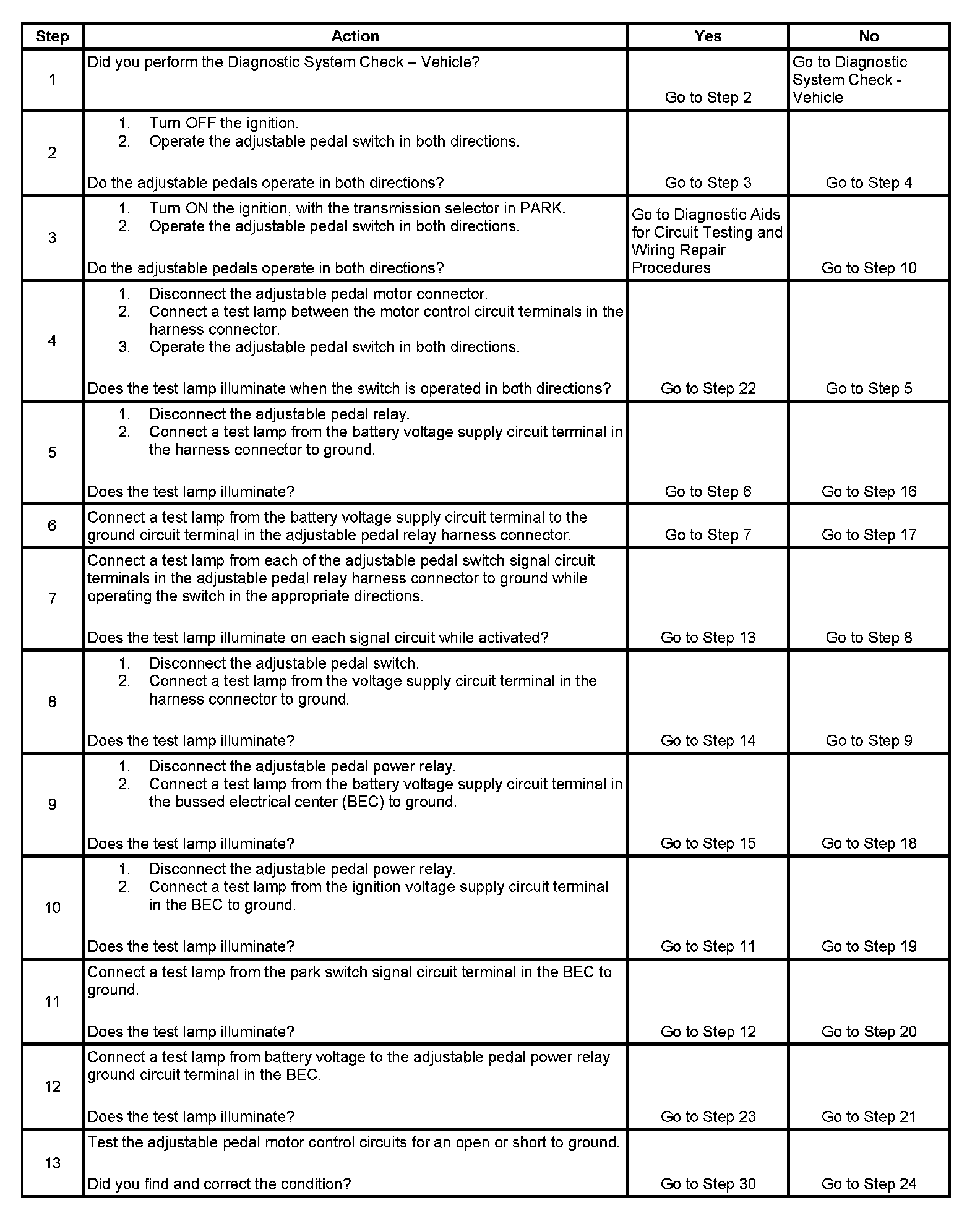

Step 1 - Step 13:

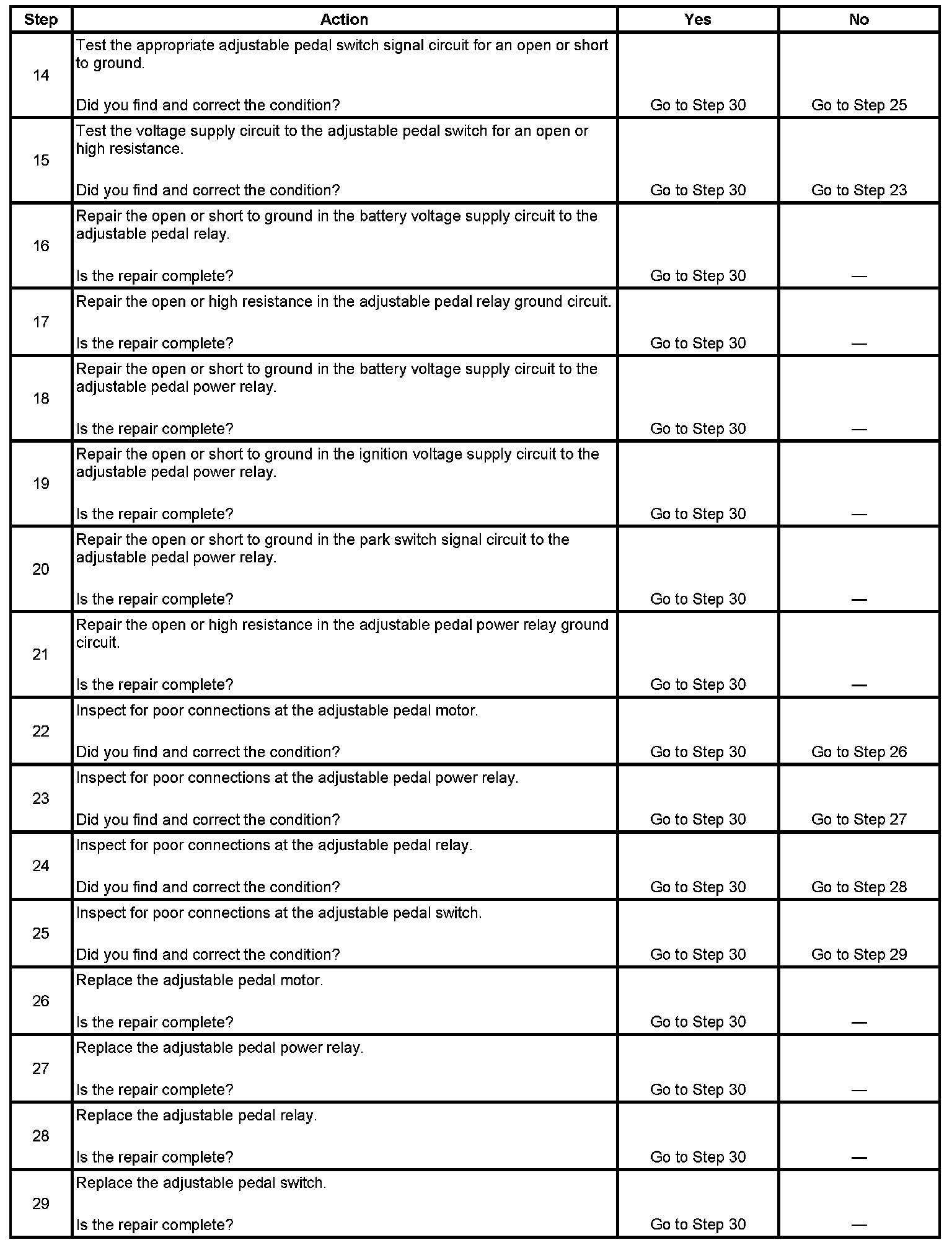

Step 14 - Step 29:

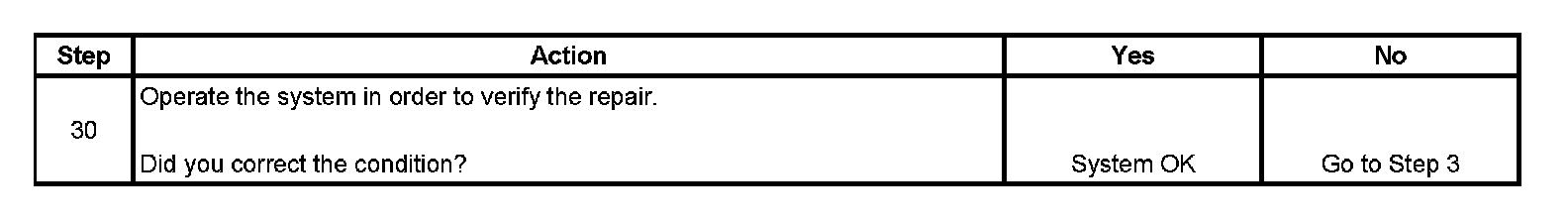

Step 30:
