ZF S6-650 - Manual Transmission
ZF S6-650 - Manual Transmission

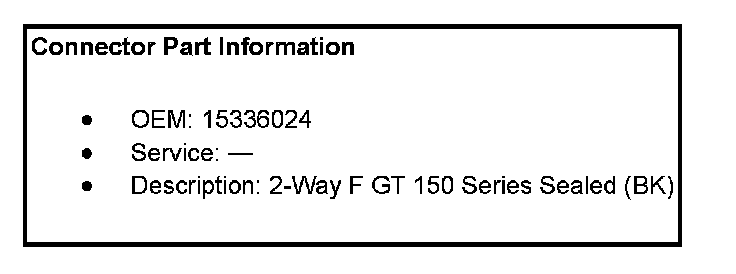

Manual Transmission Connector End Views

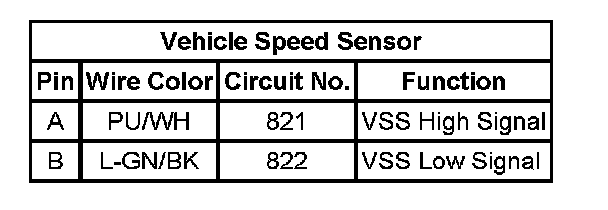

Vehicle Speed Sensor:
