Home >> Chevy Truck >> 2007 >> Silverado Classic 2500 4WD V8-8.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400 - C499 >> C429

C429

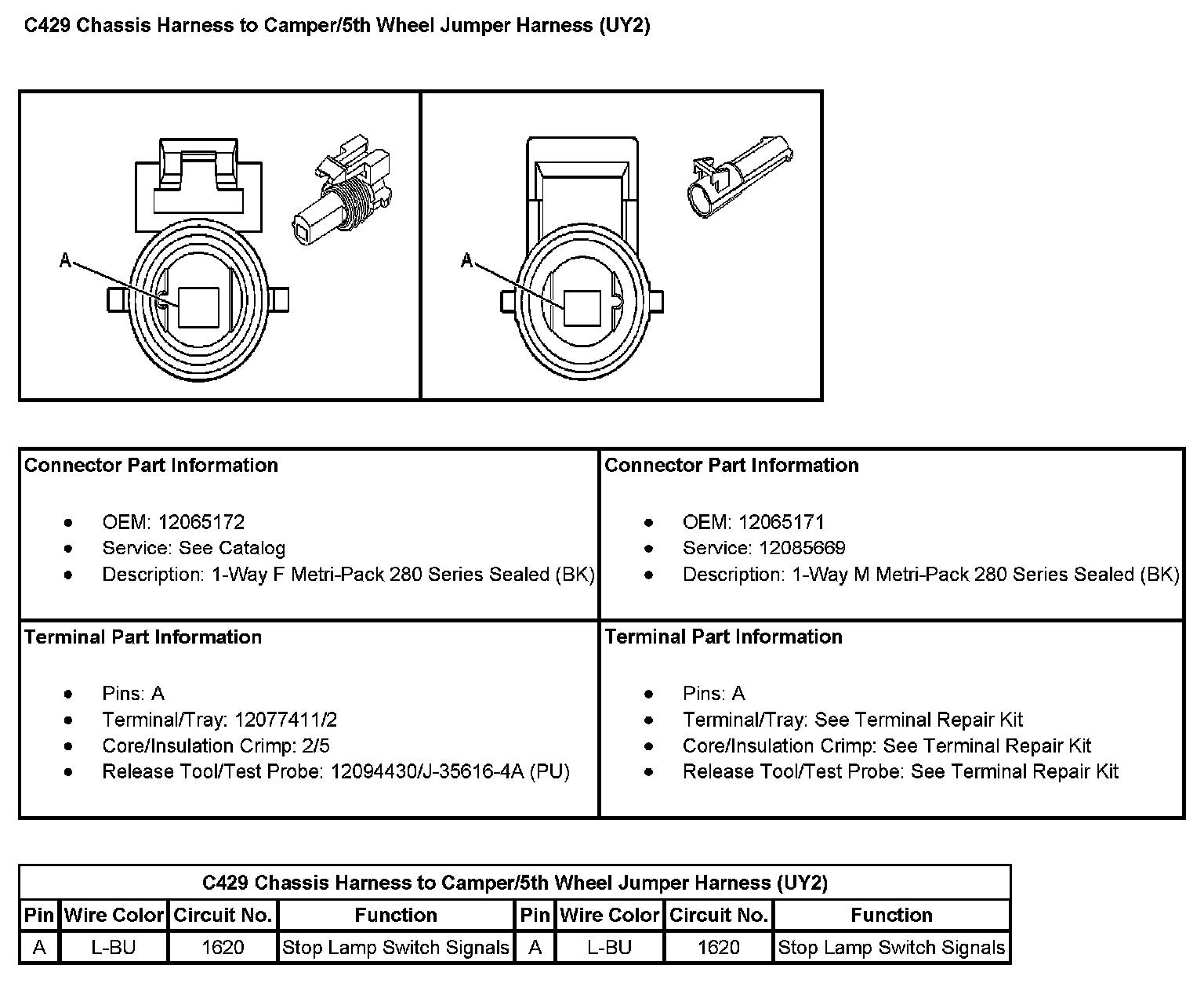

C429 Chassis Harness To Camper/5th Wheel Jumper Harness (With RPO Code UY2):
