Park Brake Cable Guide Replacement

Park Brake Cable Guide Replacement

Removal Procedure
1. Release the parking brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

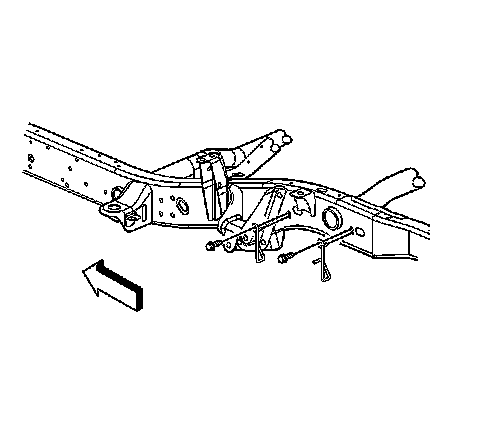

3. Remove the park brake cable guide bolt from the frame.
4. Remove the park brake cable guide.
5. Remove the park brake guide from the park brake cable.

Installation Procedure





1. Install the park brake cable guide to the park brake cable.
2. Install the park brake cable guide.

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the park brake cable guide bolt to the frame.
Tighten the bolt to 18 Nm (13 ft. lbs.).
4. Remove the safety stands.
5. Lower the vehicle.
