Park Brake Cable Equalizer Replacement

Park Brake Cable Equalizer Replacement (w/Rear Disc)

Removal Procedure
1. Release the park brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

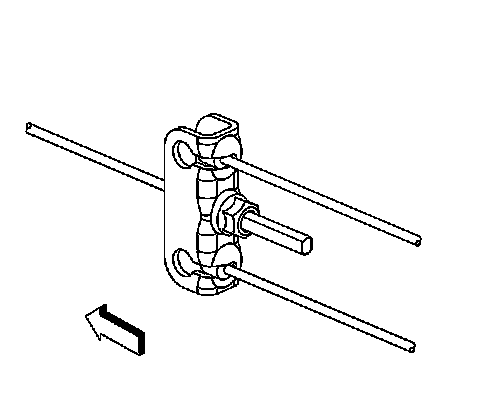

3. For the 15 series vehicles, remove the nut from the threaded end of the intermediate cable.
4. Disconnect the equalizer from the rear park brake cables.





5. For 25/35 series vehicles, disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling (w/Rear Disc).
6. For 25/35 series vehicles, disconnect the cable at the equalizer.

Installation Procedure
1. For 25/35 series vehicles, connect the cable at the equalizer.





2. For 25/35 series vehicles, enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling (w/Rear Disc).
3. For the 15 series vehicles, connect the rear park brake cables to the equalizer.





4. Notice: Refer to Fastener Notice in Service Precautions.

For the 15 series vehicles, install the nut to the threaded end of the intermediate cable.
Tighten the nut to 3.5 Nm (31 inch lbs.).
5. Remove the safety stands and lower the vehicle.
6. Adjust the park brake system. Refer to Park Brake Adjustment (w/Rear Disc) Park Brake Adjustment (w/Rear Drum).
