Tow Hook Replacement (25/35 Series)

Tow Hook Replacement (25/35 Series)

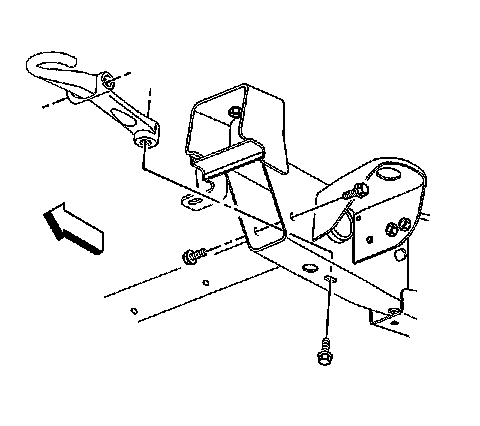

Removal Procedure





1.Remove the tow hook bolts from the frame rail.

2.Remove the tow hook from the vehicle.

Installation Procedure





1.Install the tow hook to the frame rail.

Notice:Refer to Fastener Notice .

2.Install the bolts to the tow hook through the frame rail.

TightenTighten the bolts to 85 N �m (63 lb ft).
