Frame Brace Replacement (Trailblazer EXT, Envoy XL)

Frame Brace Replacement

Removal Procedure





1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

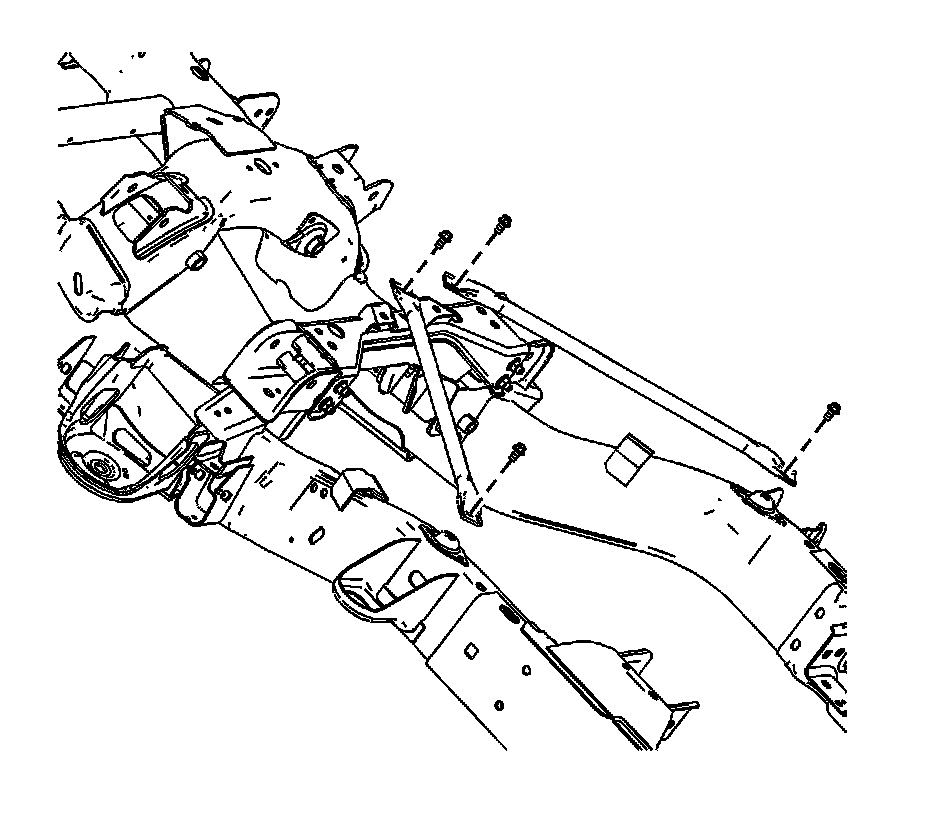

2. Remove the bolts retaining the frame brace to the frame.
3. Remove the frame brace from the vehicle.



Installation Procedure





1. Install the frame brace to the vehicle.

Notice: Refer to Fastener Notice .

2. Install the bolts retaining the frame brace to the frame.

Tighten the frame brace retaining bolts to 50 N.m (37 lb ft).

3. Lower the vehicle.
