C152
C152

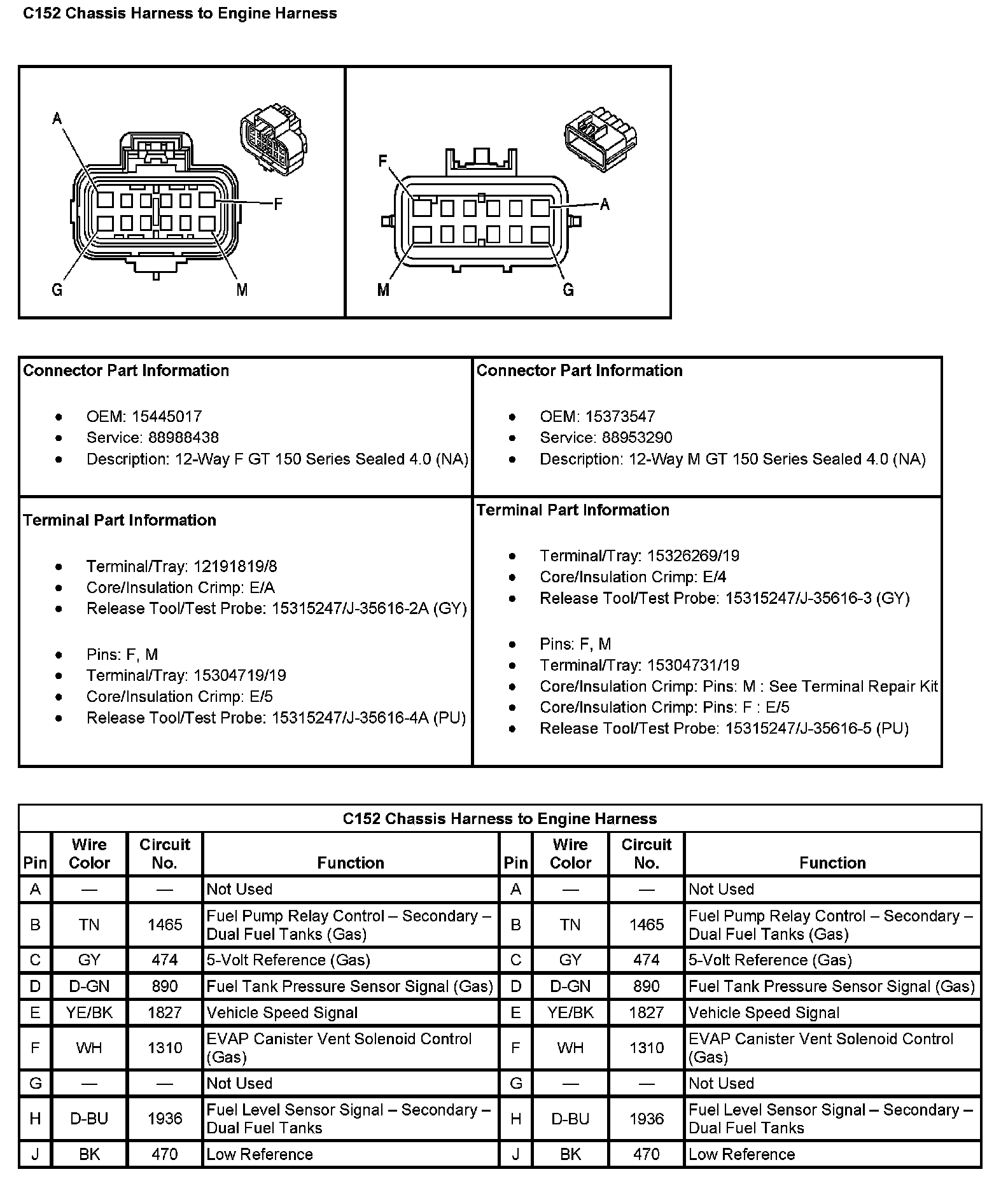

C152 Chassis Harness To Engine Harness (Pin A To J):
C152 Chassis Harness To Engine Harness (Pin K To M):
