Chevy Truck
>>
2007
>>
Silverado Classic 1500 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C117
C117

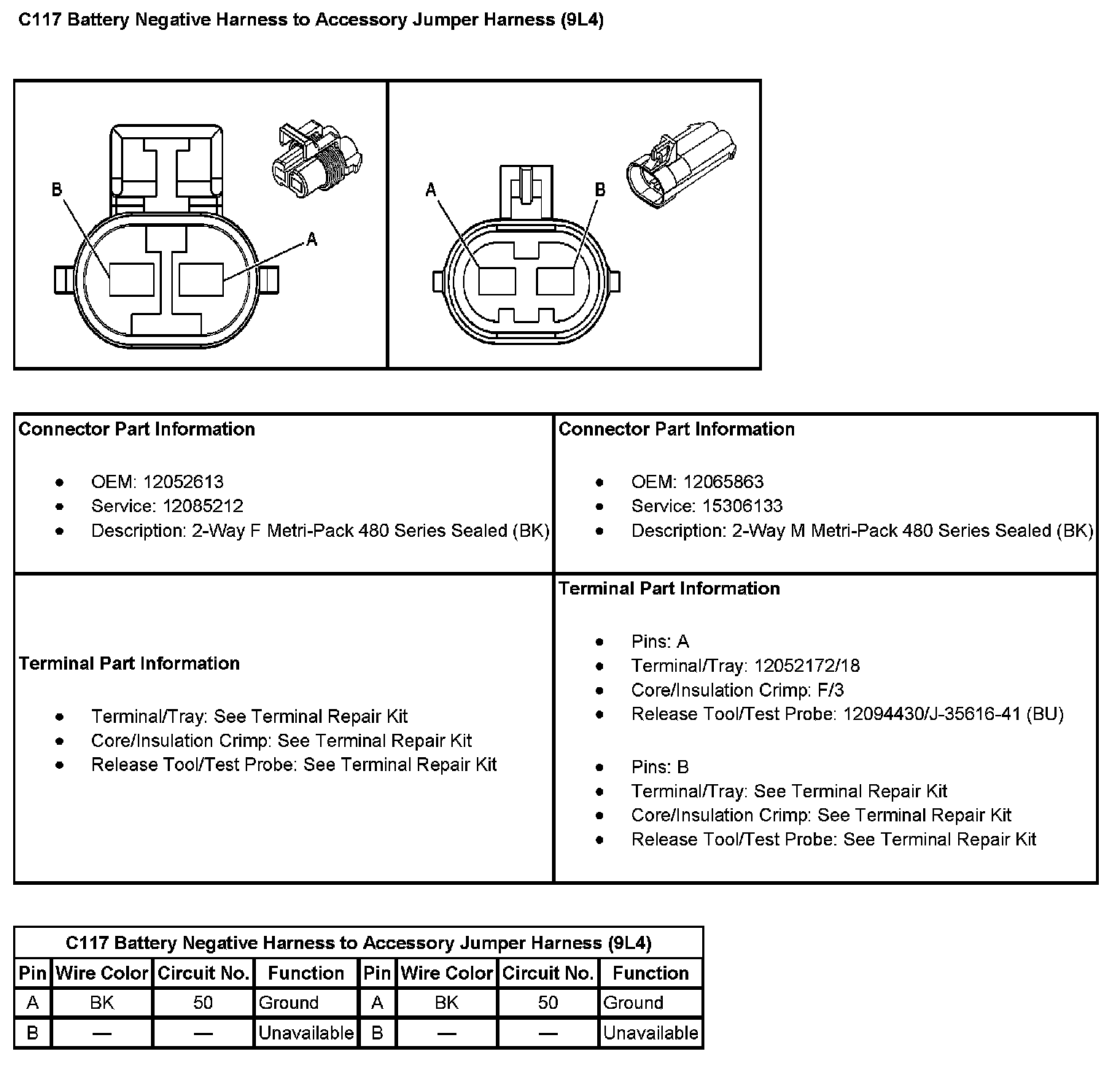

C117 Battery Negative Harness To Accessory Jumper Harness (With RPO Code 9L4):
