C100
C100

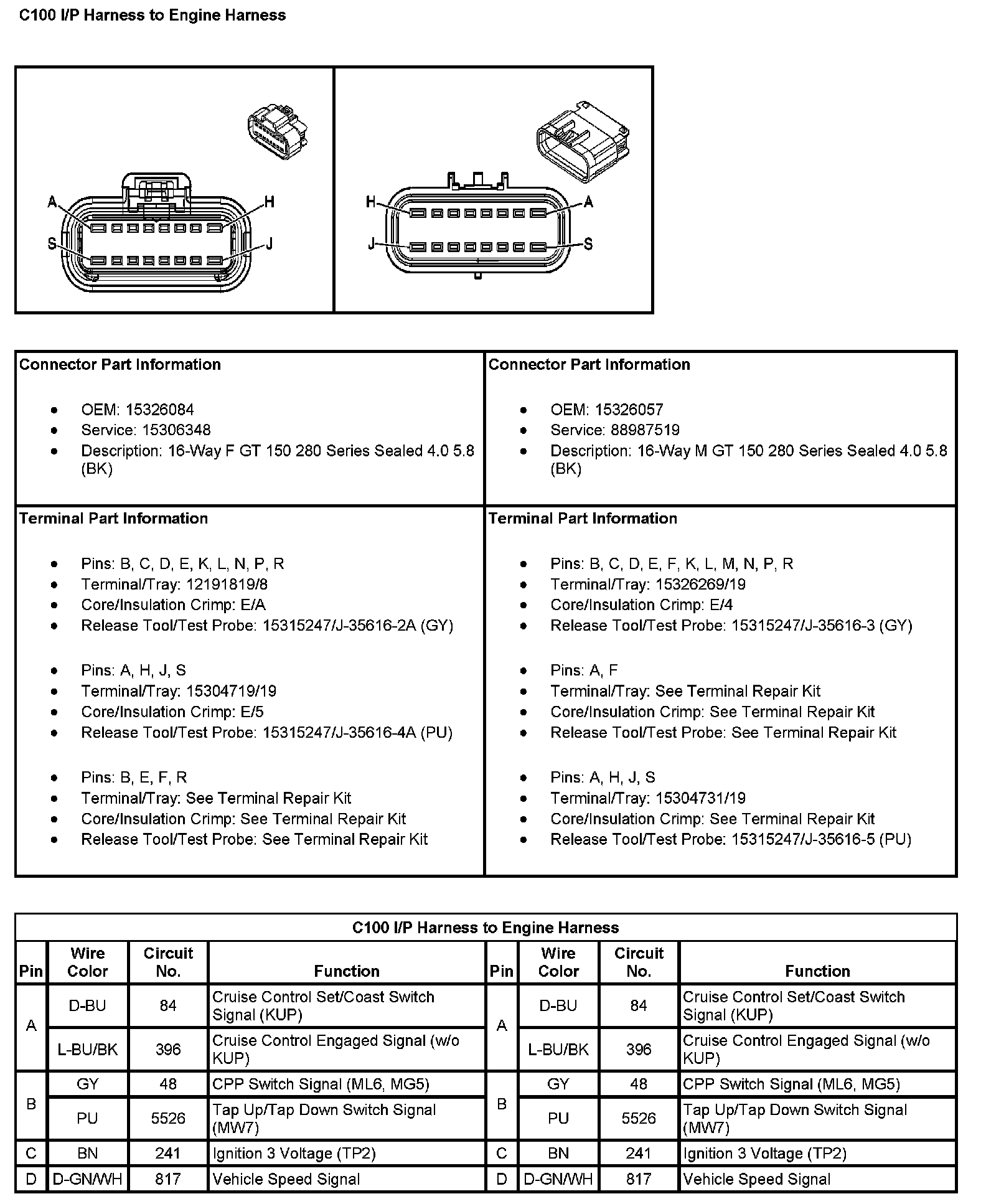

C100 I/P Harness To Engine Harness (Pin A To D):

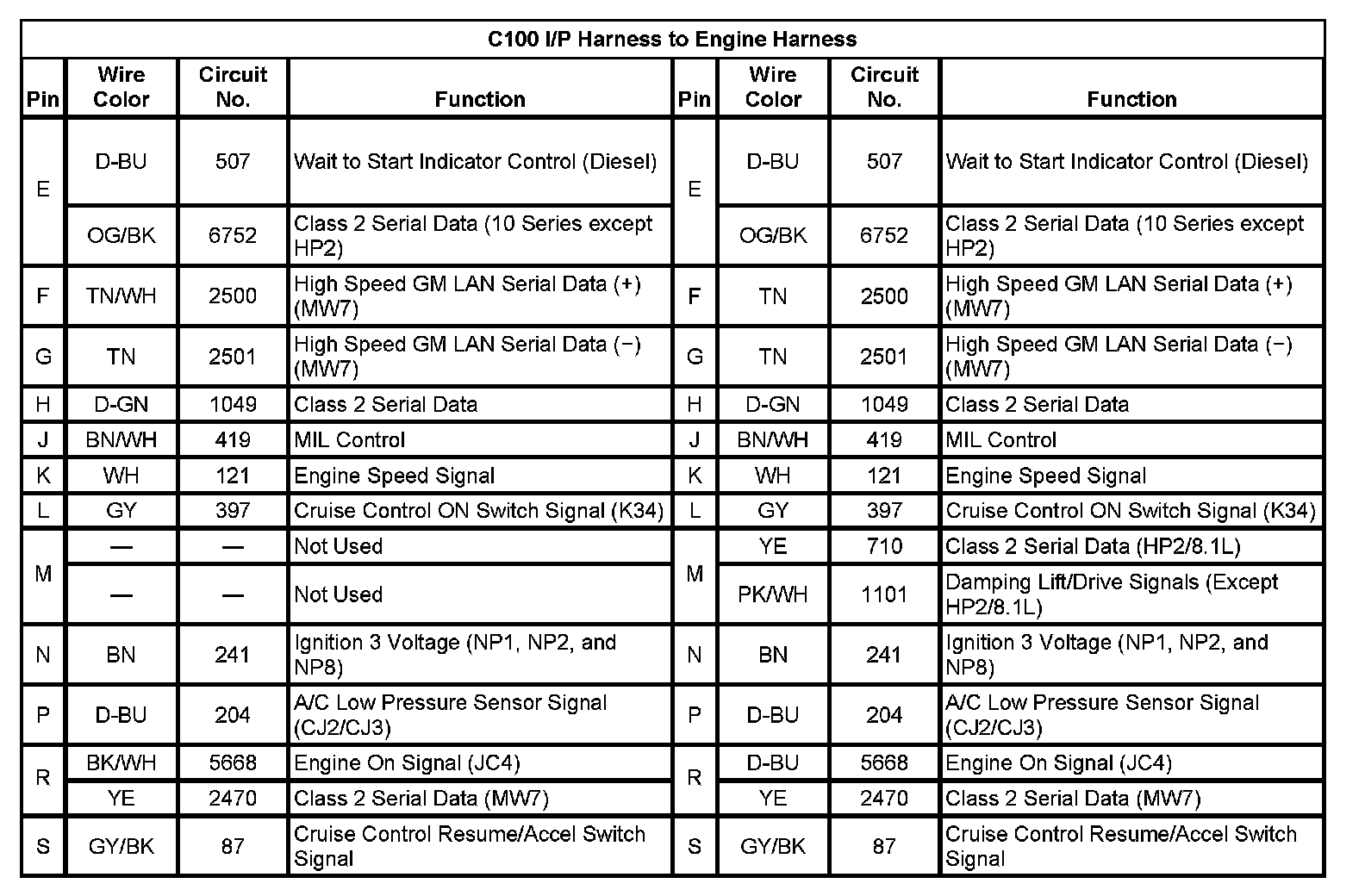

C100 I/P Harness To Engine Harness (Pin E To S):
