Chevy Truck
>>
2007
>>
Silverado Classic 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Underhood Lamp Switch
>>
Hybrid Controls Connector End Views
Hybrid Controls Connector End Views
Hybrid Controls Connector End Views

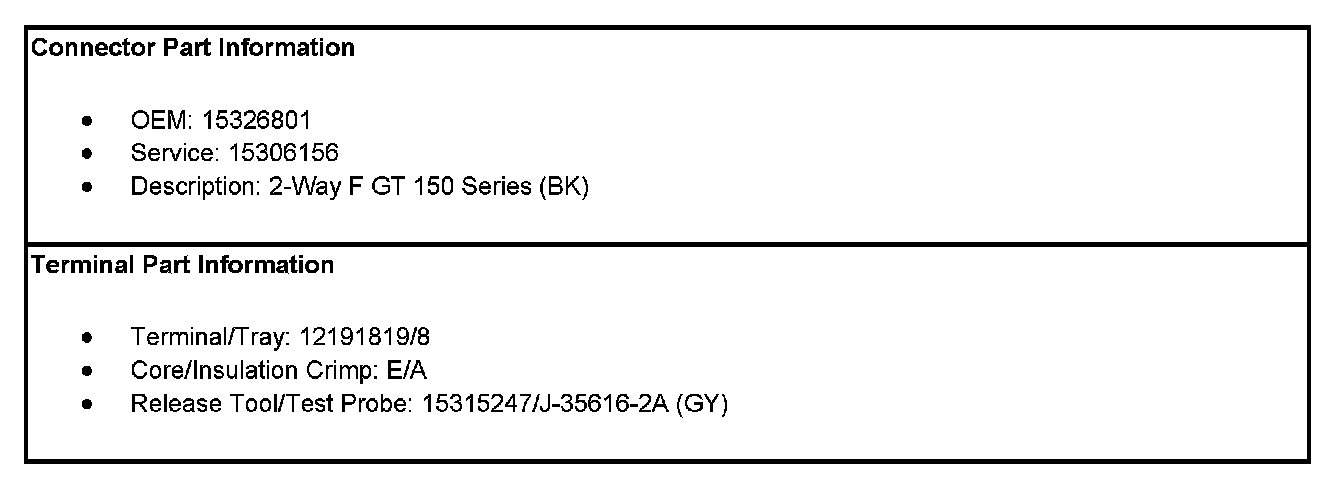

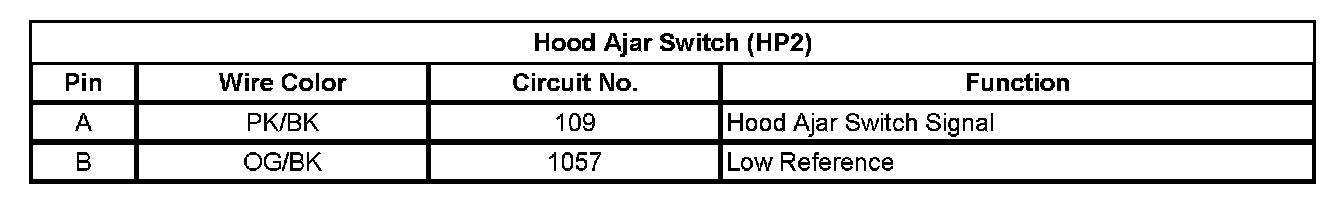

Hood Ajar Switch (HP2)
