Chevy Truck
>>
2007
>>
Silverado Classic 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Underhood Lamp Switch
>>

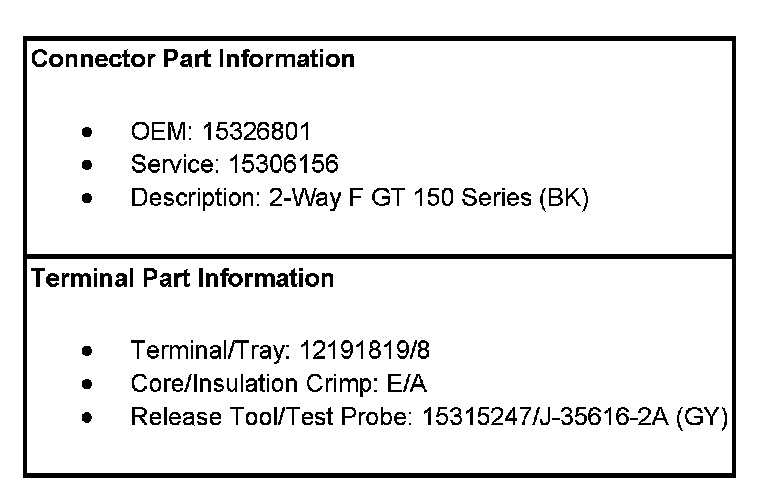

Engine Electrical Connector End Views
Engine Electrical Connector End Views
Engine Electrical Connector End Views

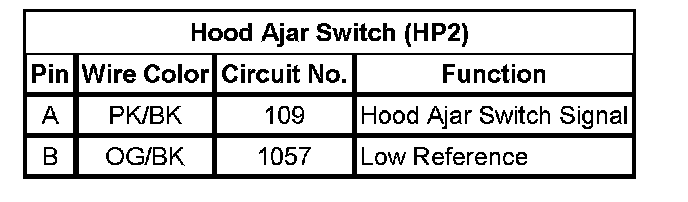

Hood Ajar Switch (HP2)
