Home >> Chevy Truck >> 2007 >> Silverado Classic 1500 2WD V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module (DDM) - C3

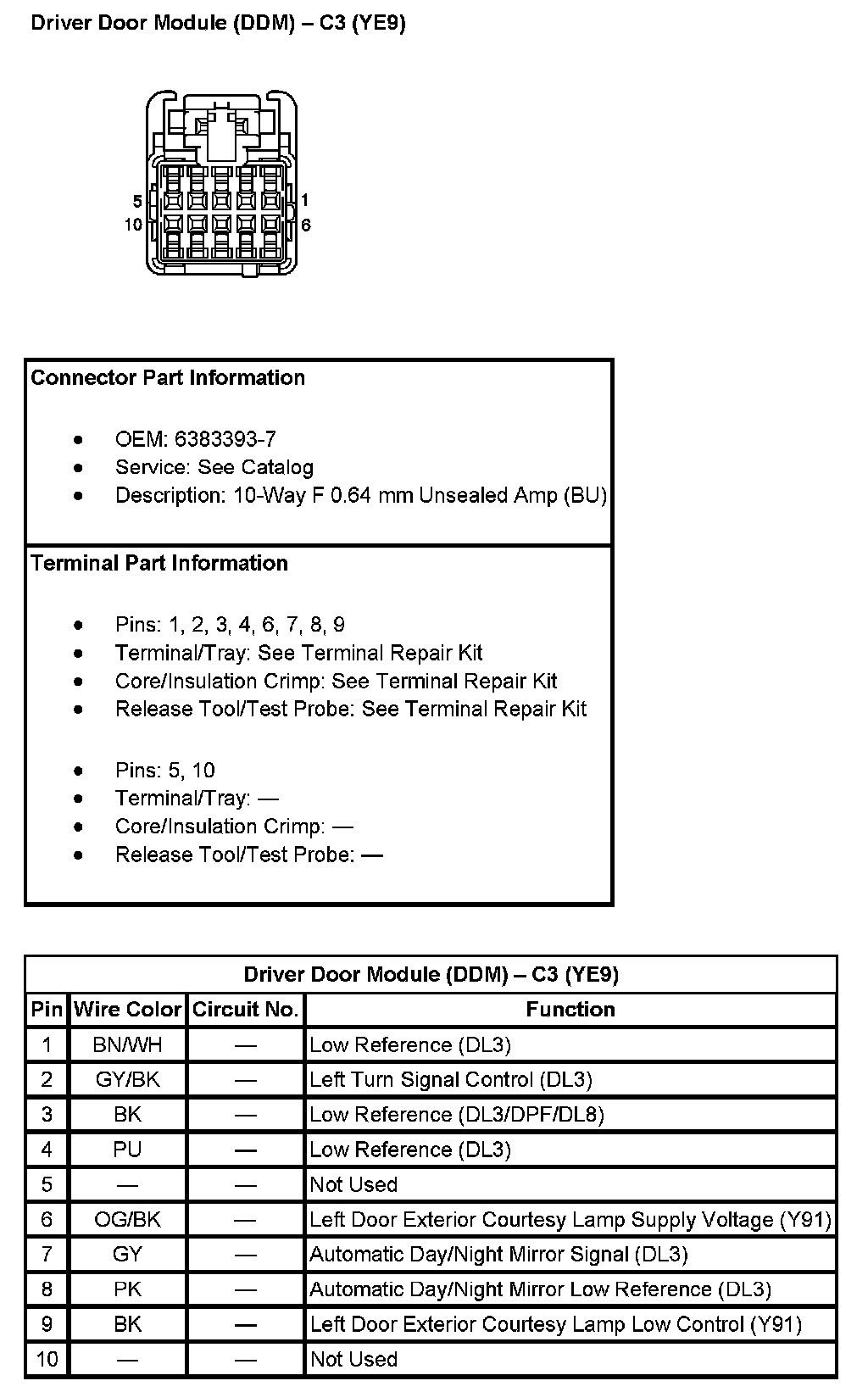

Driver Door Module (DDM) - C3

Driver Door Module (DDM) - C3 (With RPO Code YE9):
