Instrument Panel Center Air Outlet Deflector Replacement

Instrument Panel Center Air Outlet Deflector Replacement

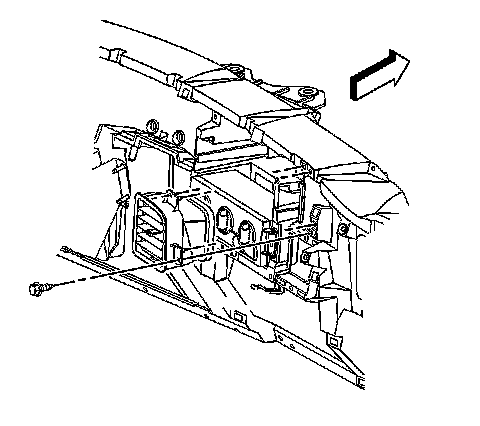

Removal Procedure

1. Remove the instrument panel (I/P) cluster bezel.
2. Remove the I/P upper trim panel.




3. Remove the deflector mounting screws.
4. Remove the deflector from the I/P.

Installation Procedure




1. Install the deflector to the I/P.

Notice: Refer to Fastener Notice.

2. Install the deflector mounting screws.

Tighten the screw to 1.6 N.m (14 lb in).

3. Install the I/P upper trim panel.
4. Install the I/P cluster bezel.
