Home >> Chevy Truck >> 2007 >> Silverado Classic 1500 2WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Water Pump

Water Pump

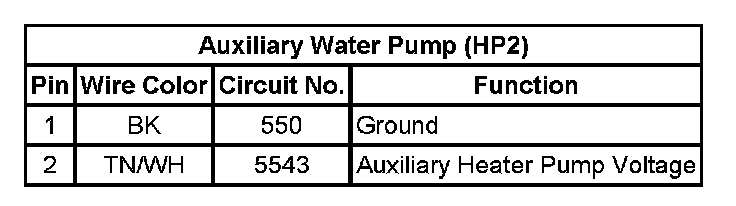

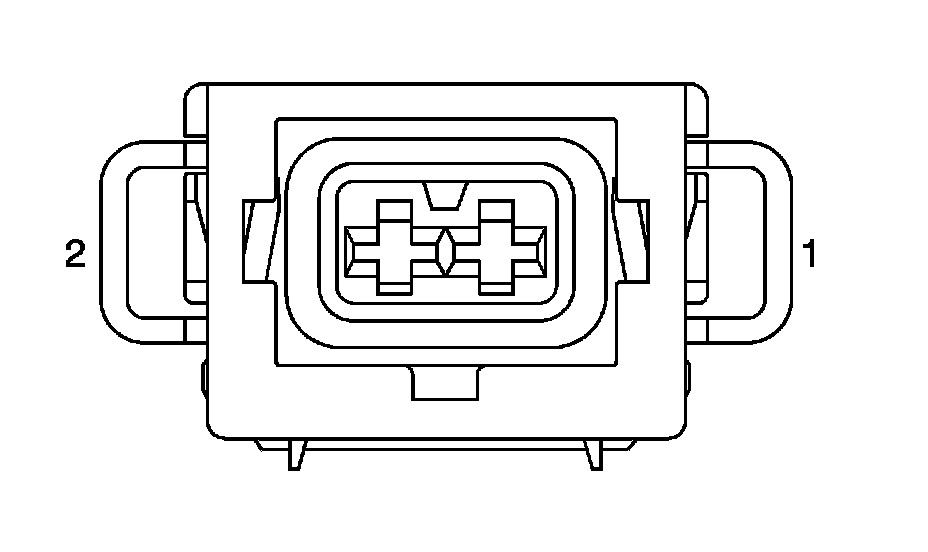

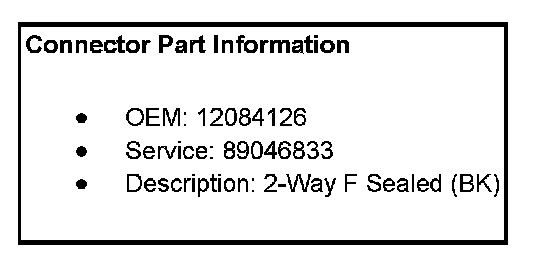

Auxiliary Water Pump (HP2):
