Silverado 3500 2WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rain Sensor
Rain Sensor
Wiper/Washer Connector End Views

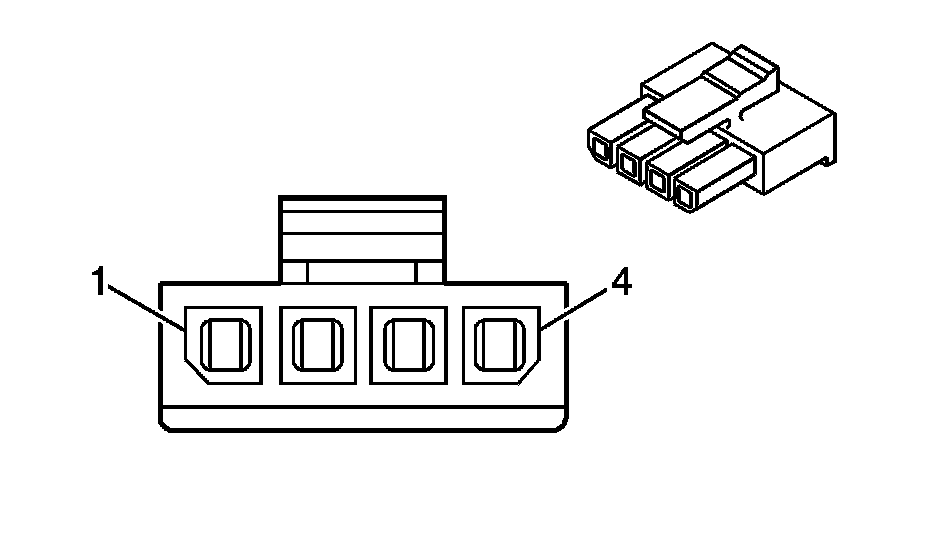

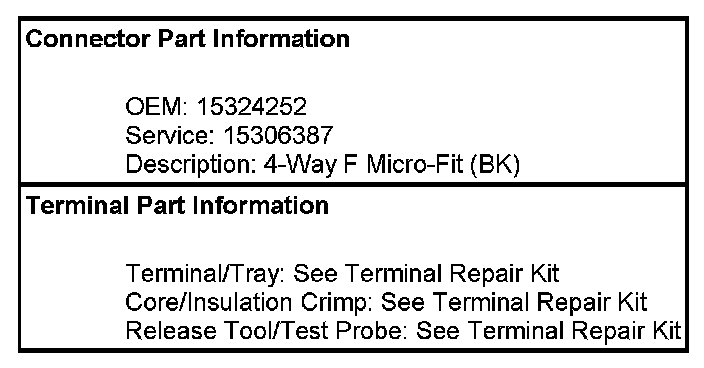

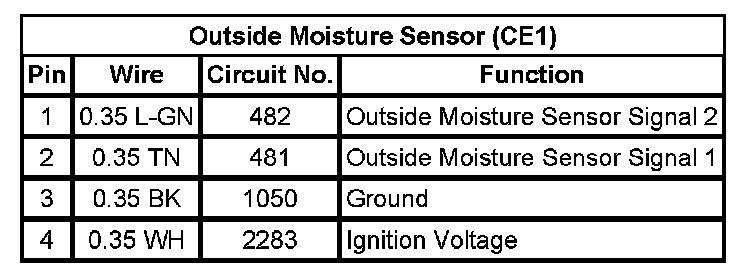

Outside Moisture Sensor (CE1)
