Valve Rocker Arm Cover Replacement - Lower Right Side



Valve Rocker Arm Cover Replacement - Lower Right Side

Removal Procedure




1. Remove the upper right valve rocker arm cover.
2. Remove the fuel injectors.

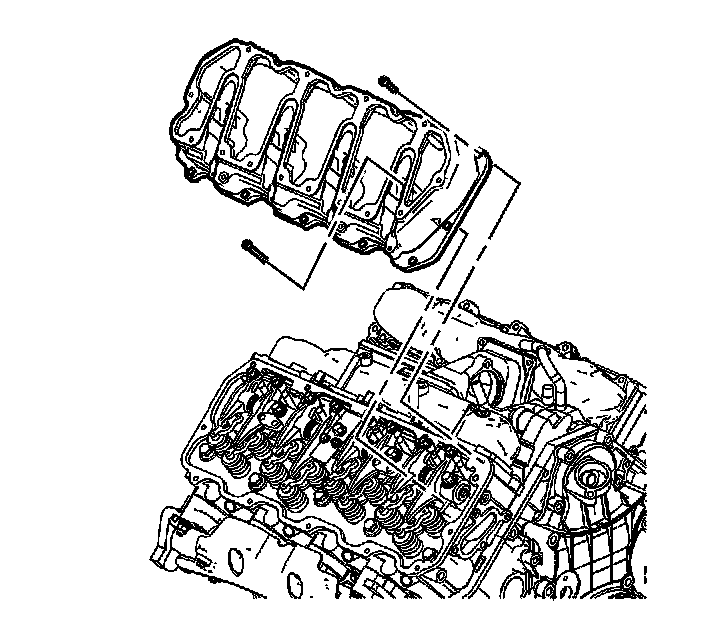

3. Remove the lower valve rocker arm cover bolts.
4. Remove the lower valve rocker arm cover.
5. Remove the gasket from the lower valve rocker arm cover.
6. Inspect the lower valve rocker arm cover gasket for damage, replace if necessary. Otherwise reuse the old gasket.
7. If required, clean and inspect the lower valve rocker arm cover. Refer to Valve Rocker Arm Cover Cleaning and Inspection - Lower.

Installation Procedure




1. Install the lower valve rocker arm cover gasket.
2. Install the lower valve rocker arm cover.
3. Install the lower valve rocker arm cover bolts.





Notice: Refer to Fastener Notice.

4. Tighten the bolts in the sequence shown.

Tighten the bolts to 10 N.m (89 lb in).

5. Install the fuel injectors.
6. Install the right upper valve rocker arm cover.
