X128

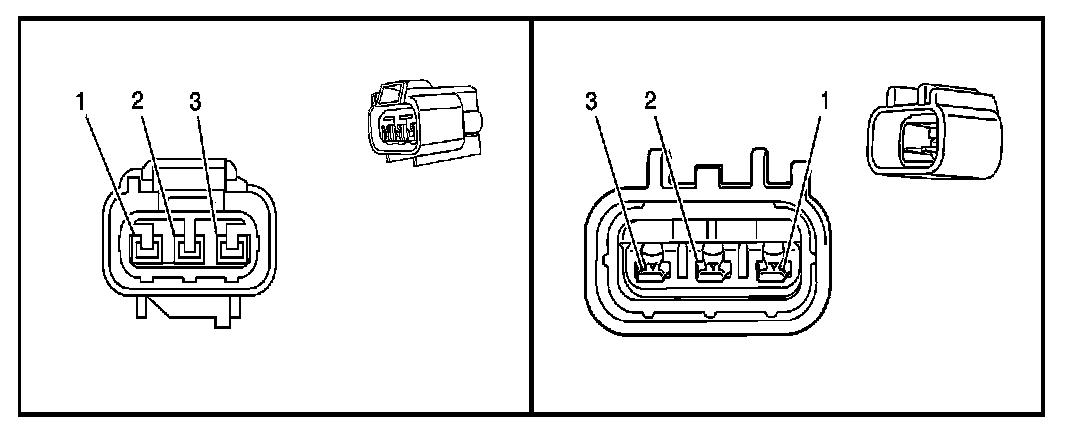

Inline Harness Connector End Views

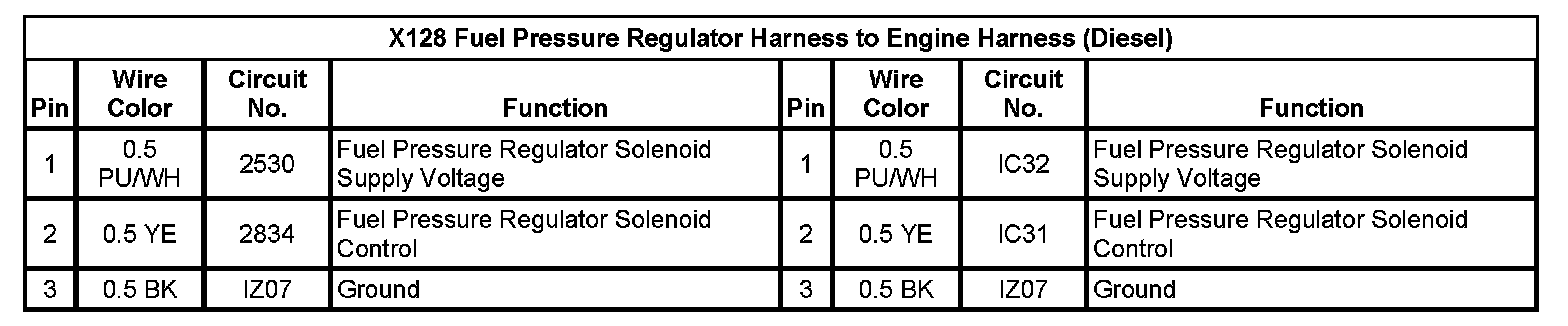

X128 Fuel Pressure Regulator Harness to Engine Harness (Diesel)
