Home >> Chevy Truck >> 2007 >> Silverado 2500 4WD V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> X100 - X199 >> X109

X109



Inline Harness Connector End Views

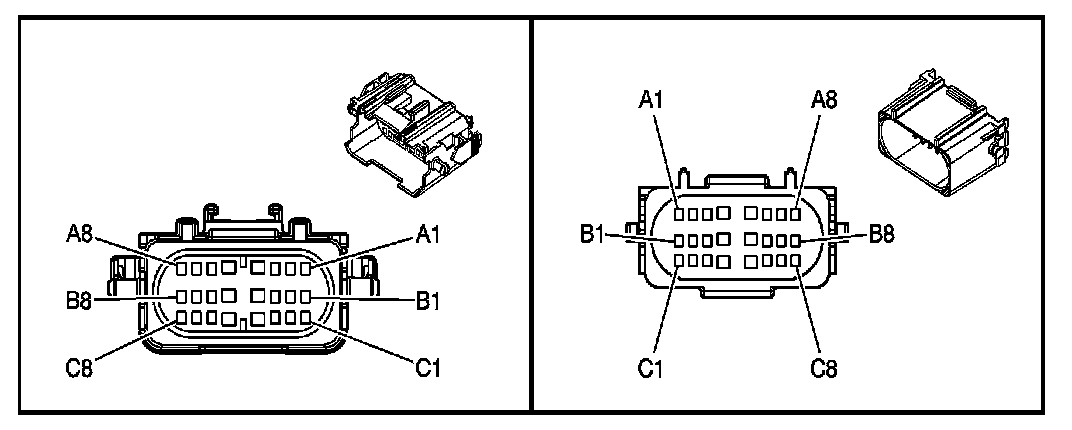

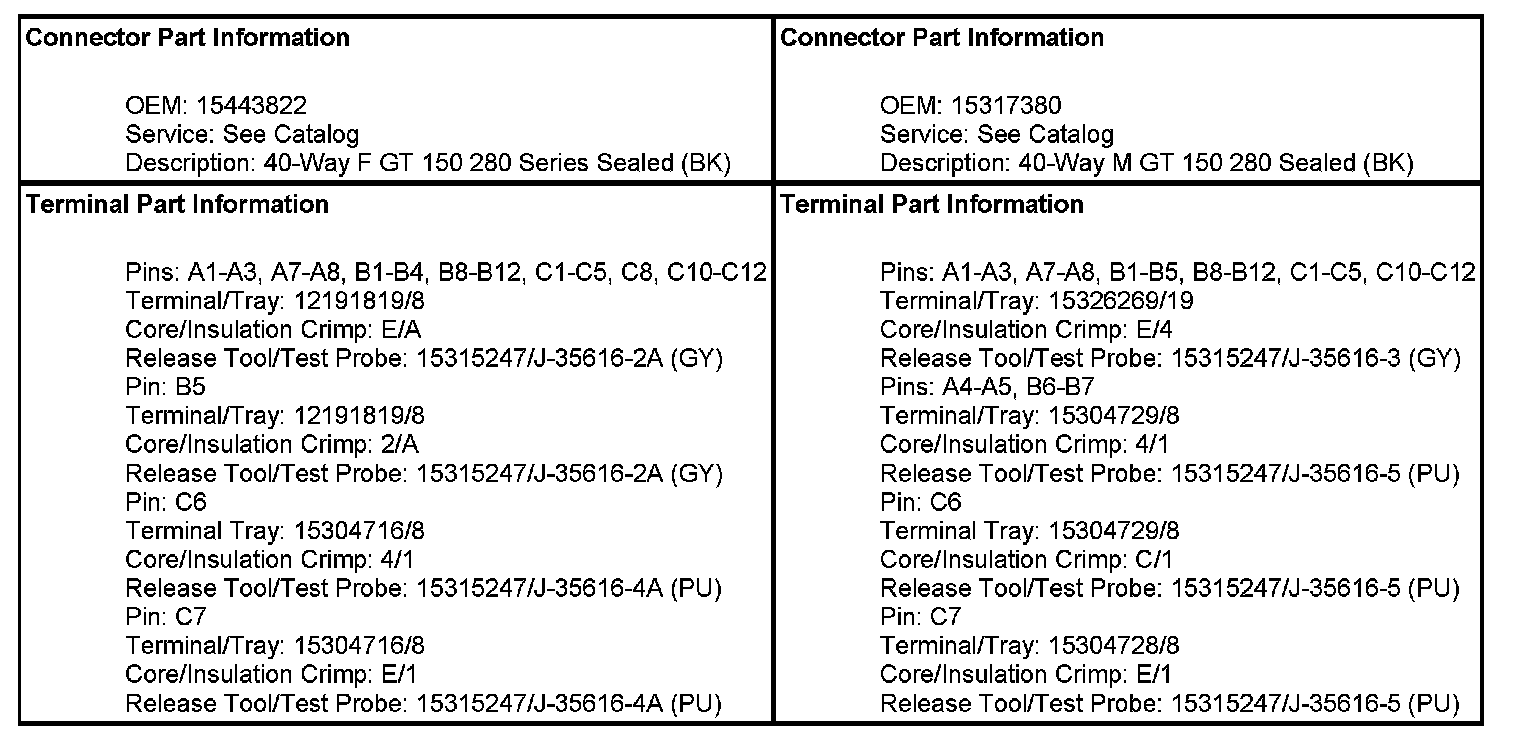

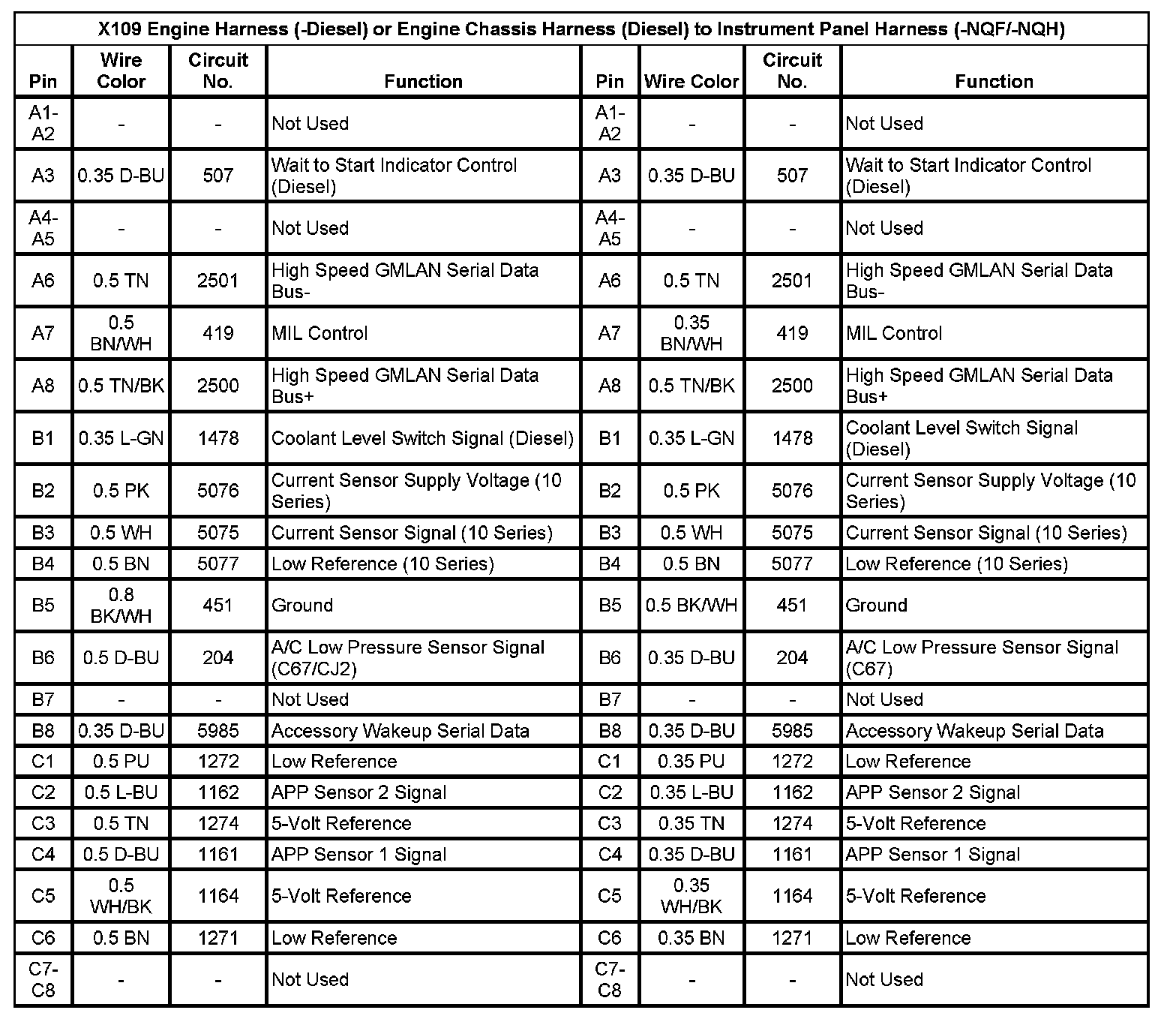

X109 Engine Harness (-Diesel) or Engine Chassis Harness (Diesel) to Instrument Panel Harness (NQF/NQH)

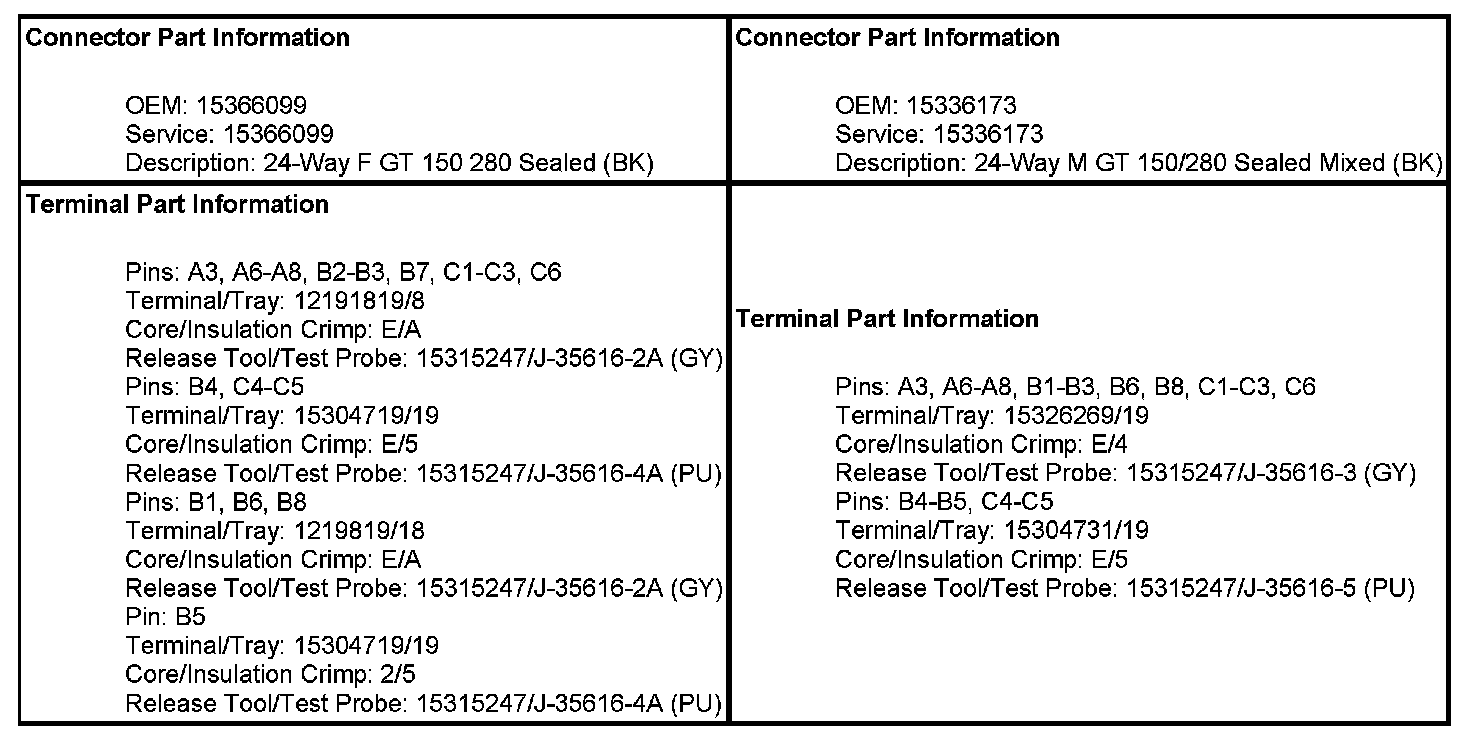

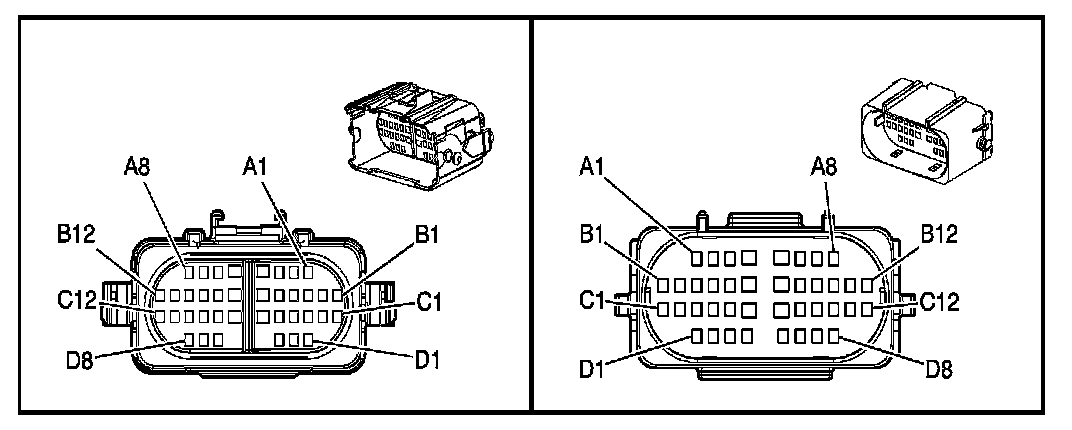

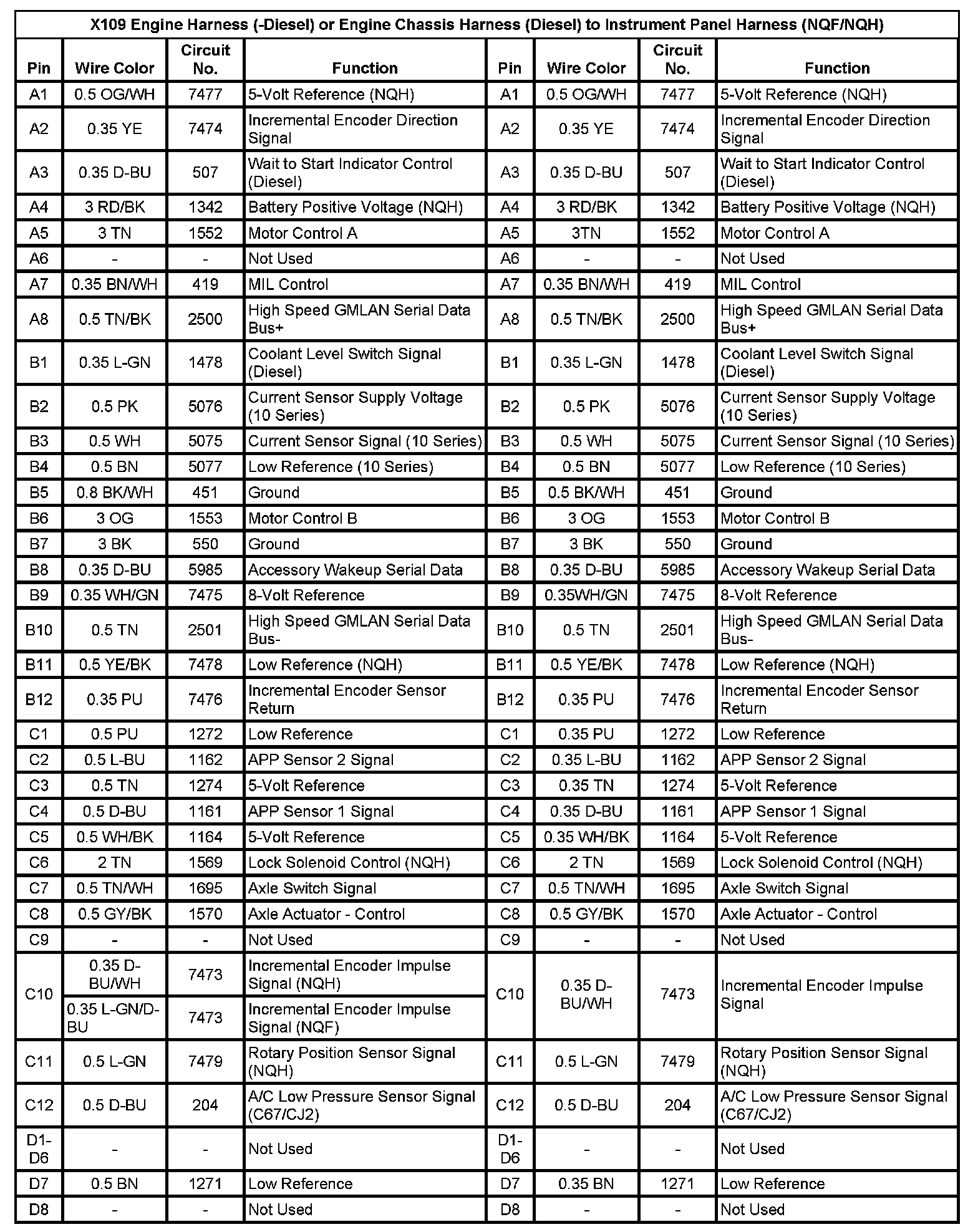

X109 Engine Harness (-Diesel) or Engine Chassis Harness (Diesel) to Instrument Panel Harness (-NQF/-NQH)
