Home
>>
Chevy Truck
>>
2007
>>
Silverado 2500 4WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
>>

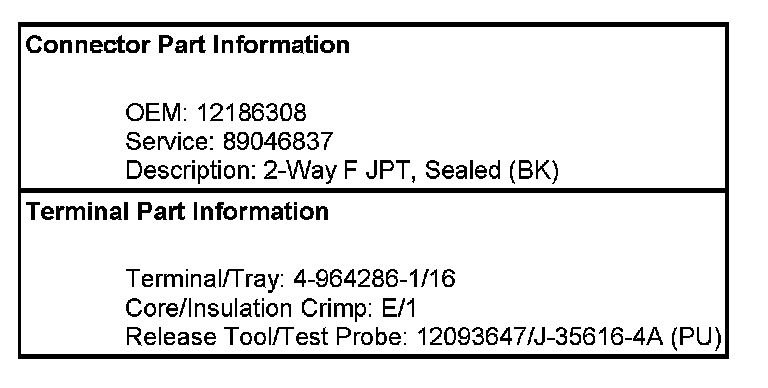

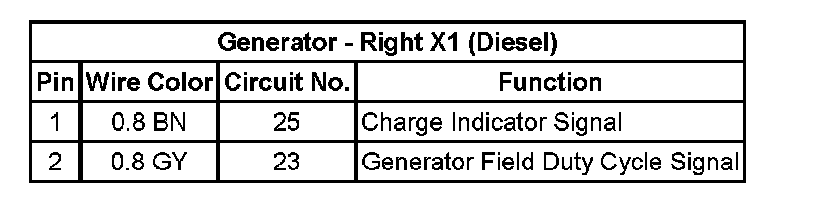

Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel):
