Transmission Fluid Cooler Hose/Pipe Connector Replacement

Transmission Fluid Cooler Hose/Pipe Connector Replacement

Removal Procedure




1. Disconnect the hose from the transmission oil cooler pipe connector being replaced.

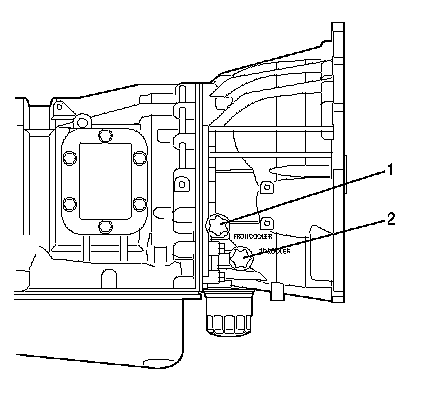

2. Remove the transmission oil cooler pipe connectors (1) and (2).

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install new transmission oil cooler pipe connectors (1 and 2).

Tighten to 25 N.m (18 lb ft).

2. Connect the hose to the transmission oil cooler pipe connectors.
