Chevy Truck
>>
2007
>>
Silverado 1500 2WD V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor (WSS) - Left Rear (JL4)
Wheel Speed Sensor (WSS) - Left Rear (JL4)
Wheel Speed Sensor
(WSS) - Left Rear (JL4)

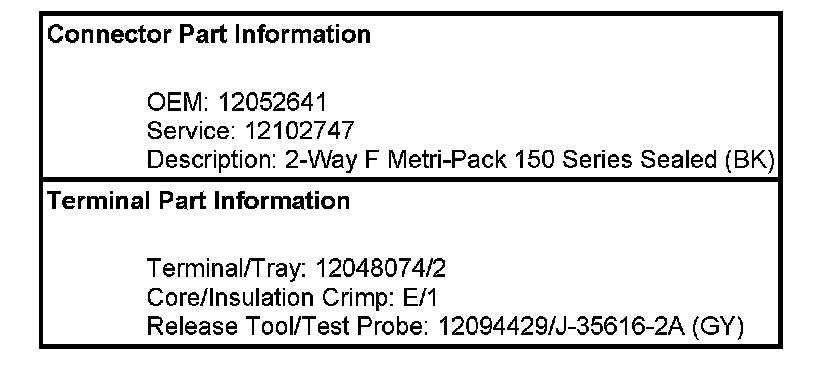

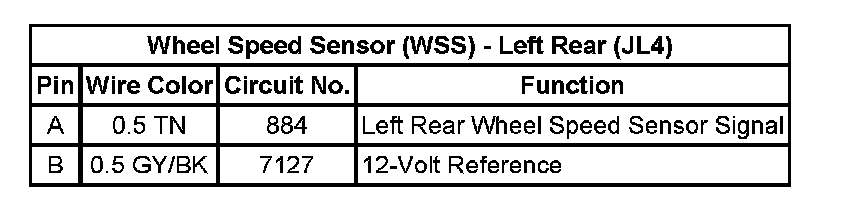

Wheel Speed Sensor (WSS) - Left Rear (JL4):
