Chevy Truck
>>
2007
>>
Silverado 1500 2WD V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor
(JL4)

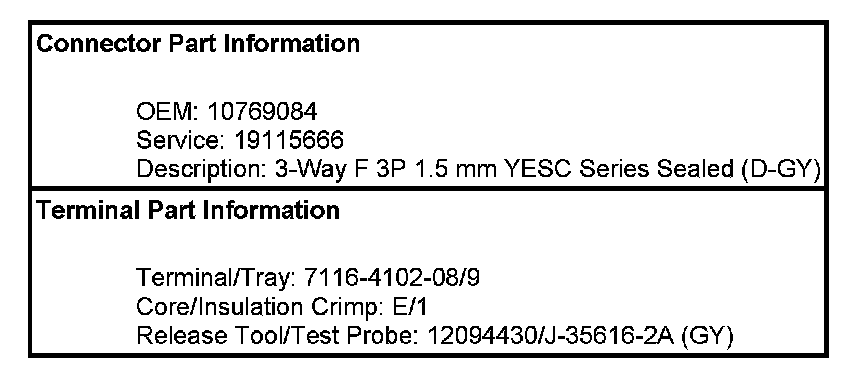

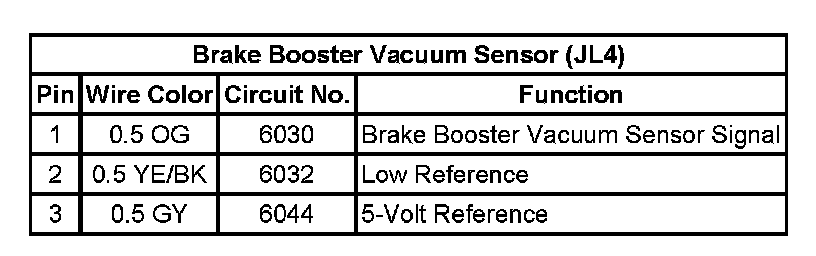

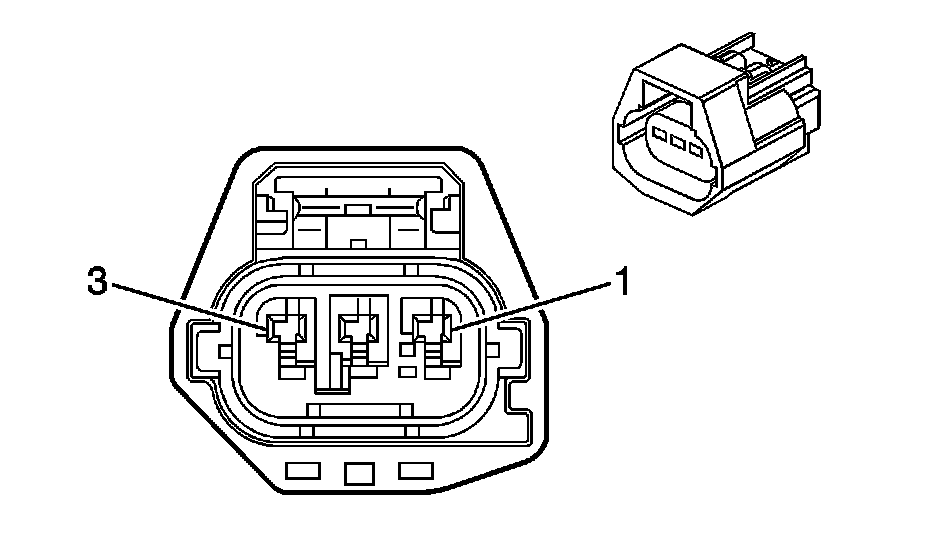

Brake Booster Vacuum Sensor (JL4):
