C100
C100
C100 Engine Side To Transmission Side (Pin A To N):

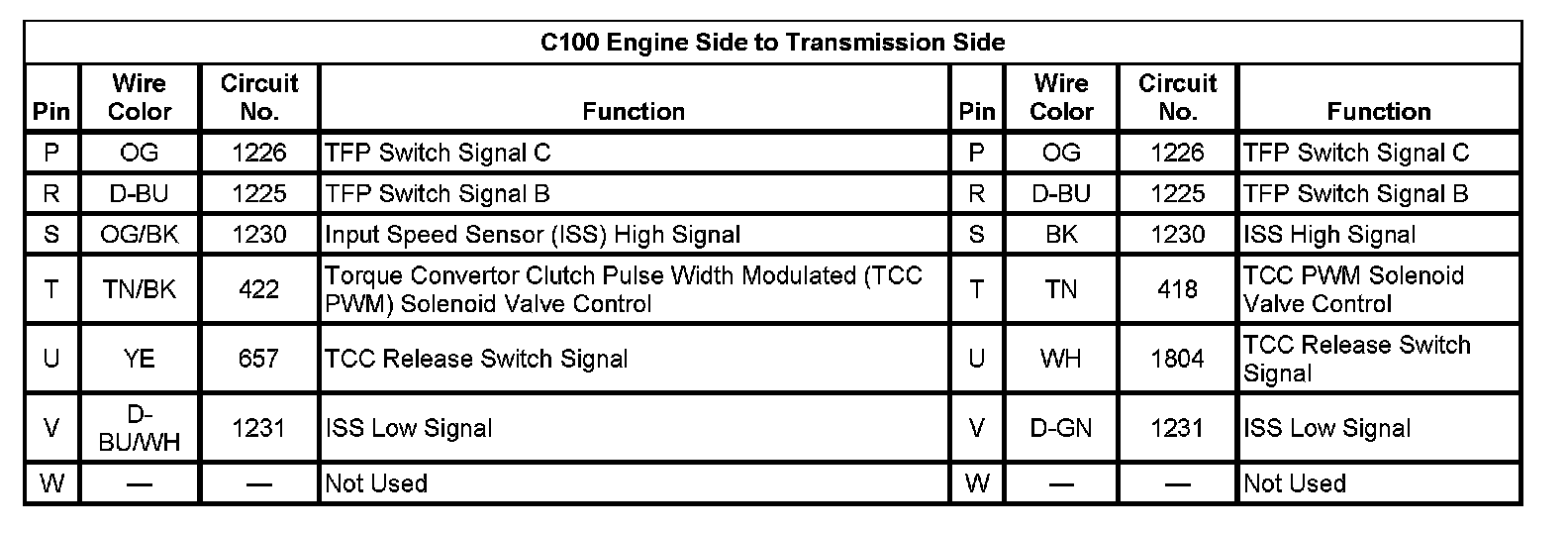

C100 Engine Side To Transmission Side (Pin P To W):
