Home
>>
Chevy Truck
>>
2007
>>
HHR L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor Clutch
Compressor Clutch
HVAC Connector End Views

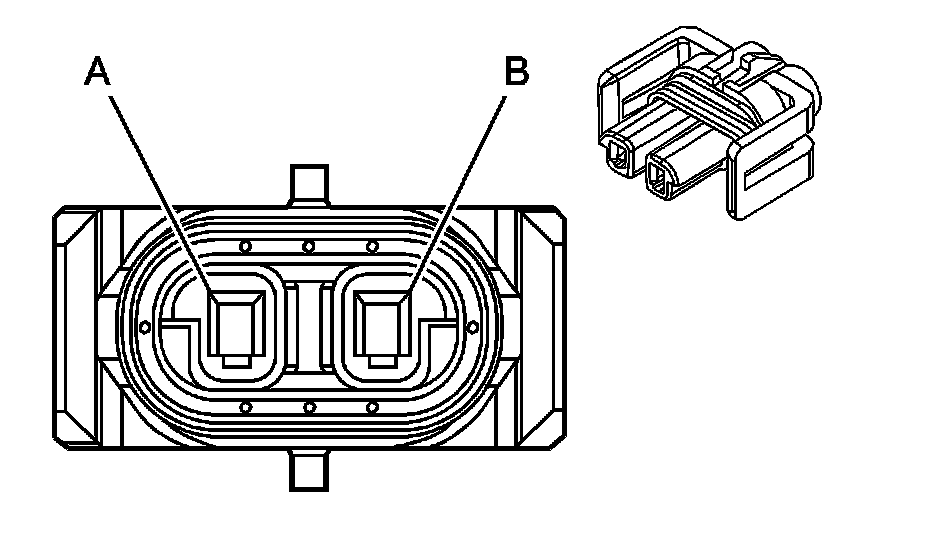

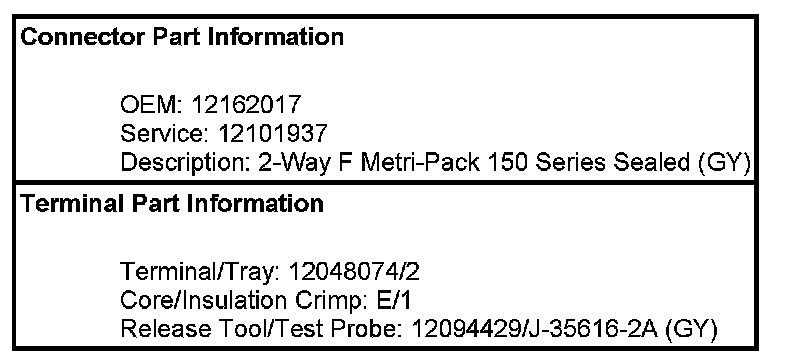

A/C Compressor Clutch
