Home
>>
Chevy Truck
>>
2007
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C400 - C499
>>
C406
C406

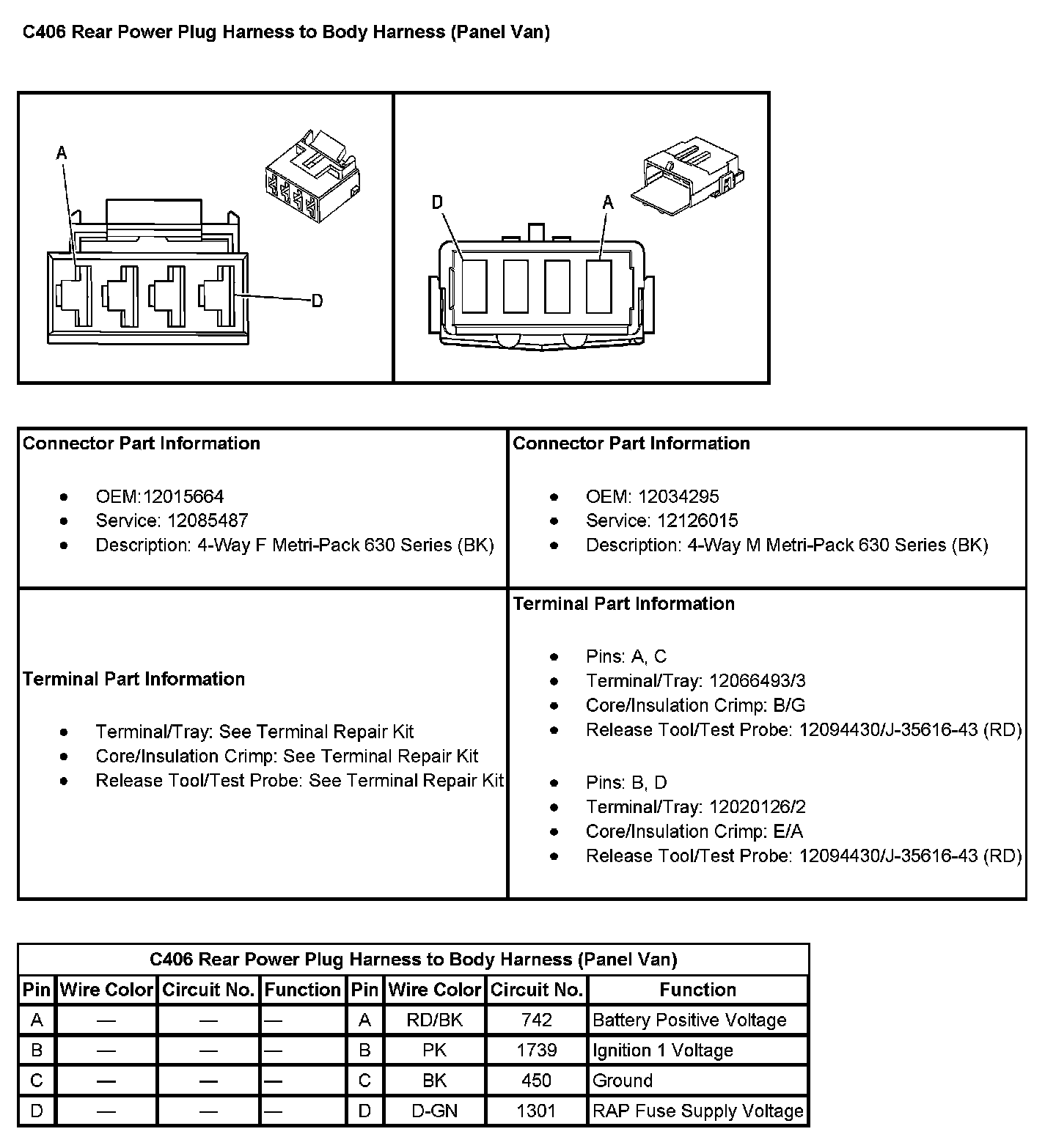

C406 Rear Power Plug Harness To Body Harness (Panel Van):
