Air Door Actuator / Motor: Diagrams



HVAC Connector End Views

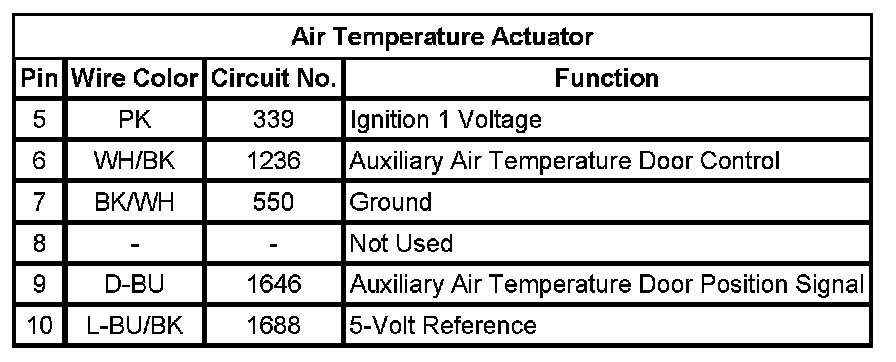

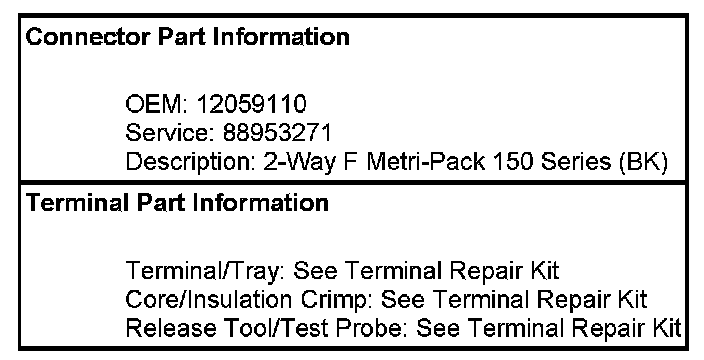

Air Temperature Actuator

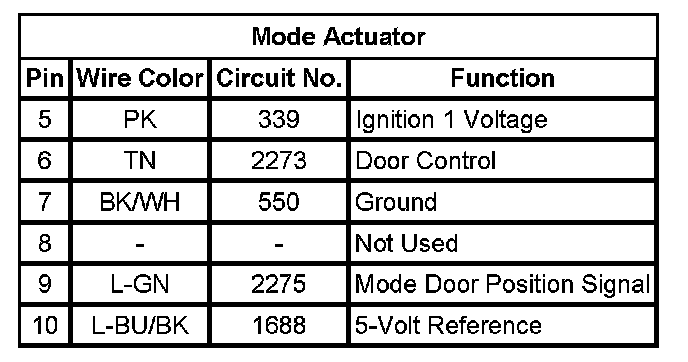

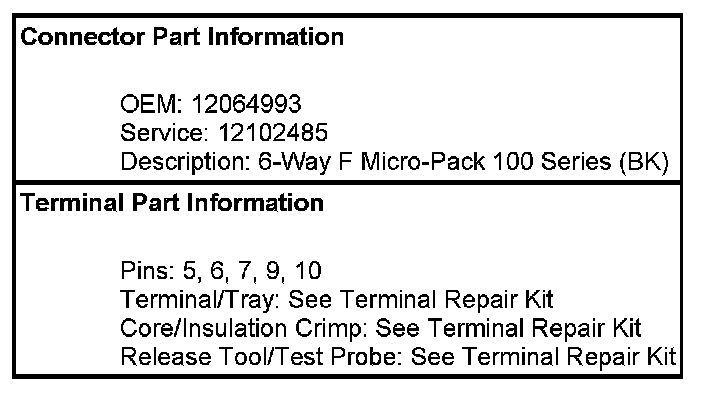

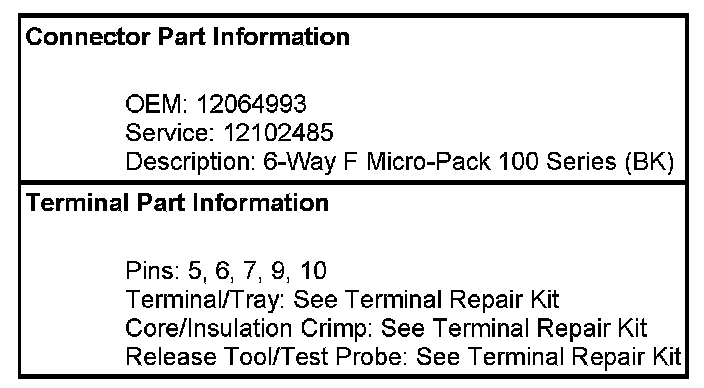

Mode Actuator

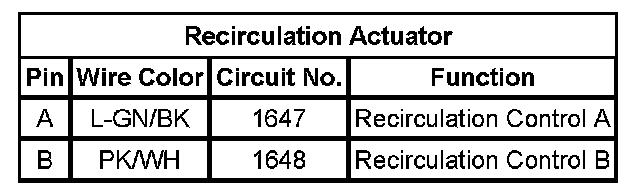

Recirculation Actuator

Auxiliary Transmission Fluid Pump (M33 Only):
