Fuel Injector

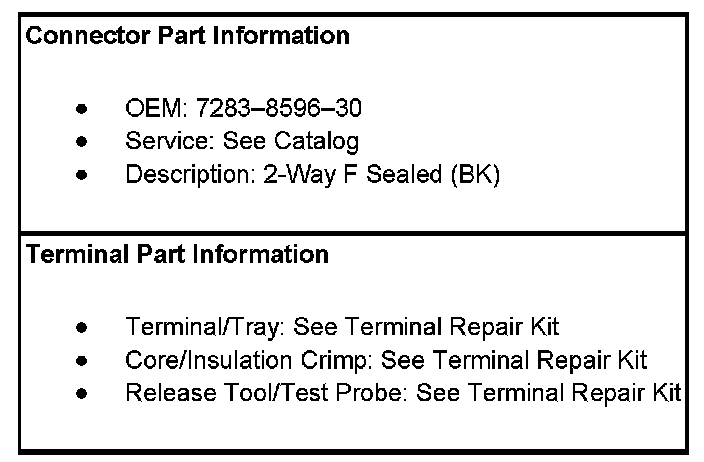

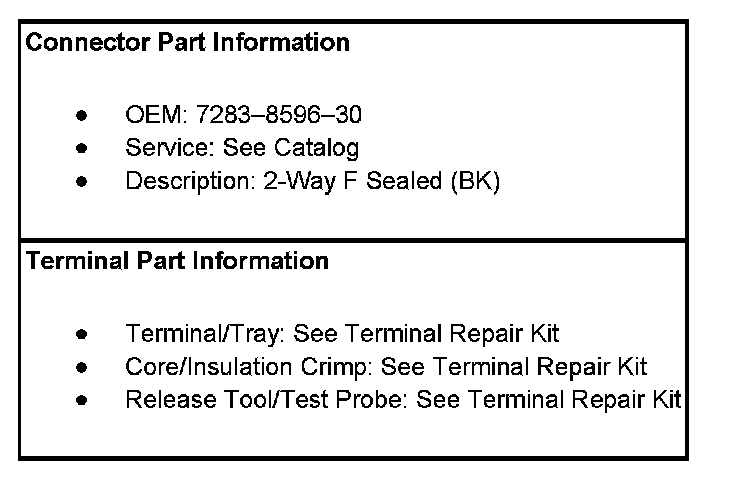

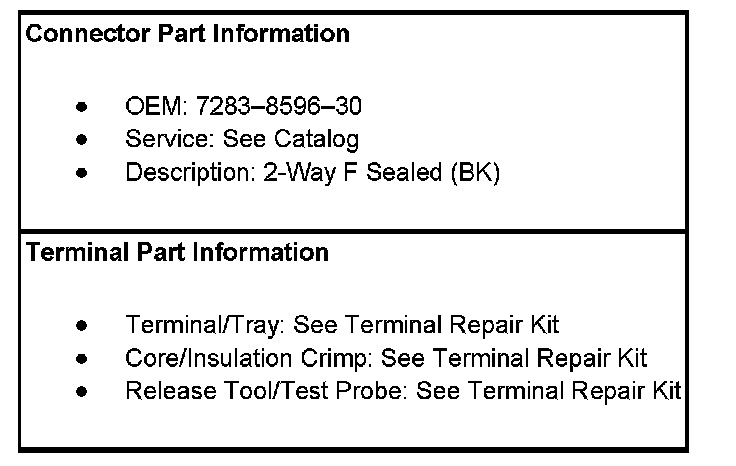

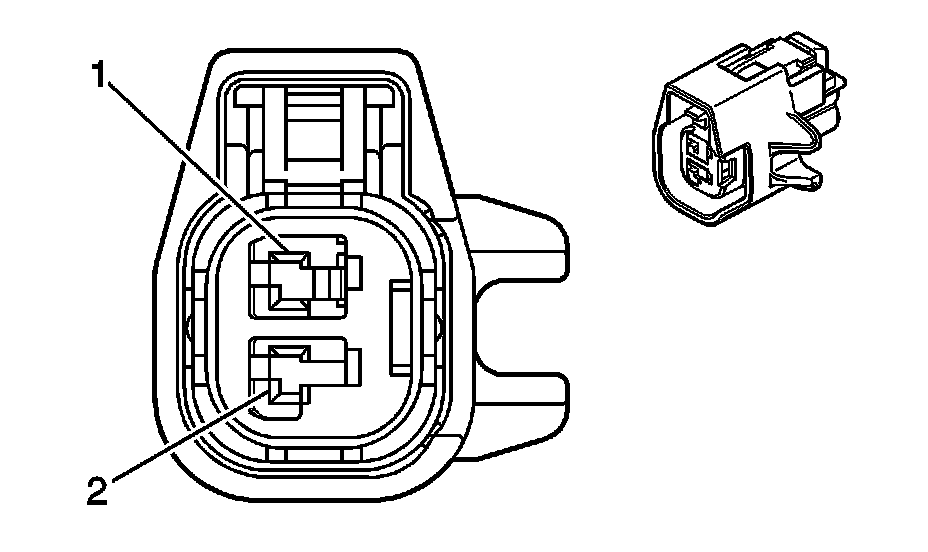

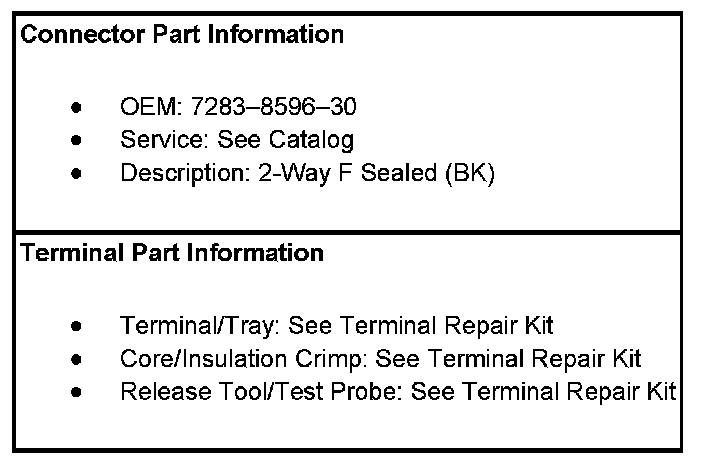

Engine Controls Connector End Views

Fuel Injector 1

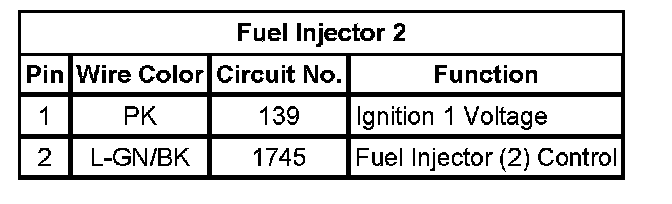

Fuel Injector 2

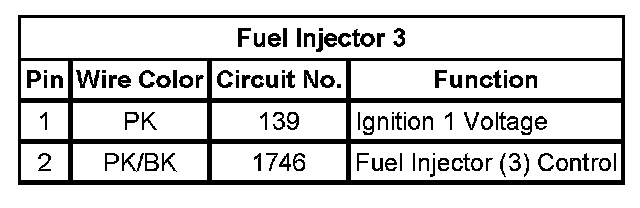

Fuel Injector 3

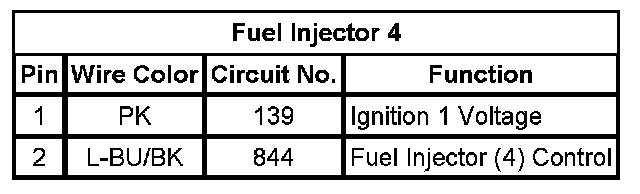

Fuel Injector 4
