Express 3500 V8-6.6L DSL Turbo VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch
Engine Controls Connector End Views

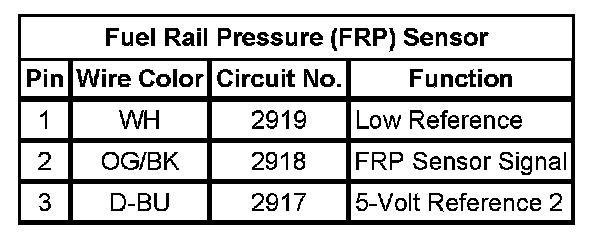

Fuel Rail Pressure (FRP) Sensor
