Home
>>
Chevy Truck
>>
2007
>>
Express 3500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vacuum Pump HVAC
Vacuum Pump HVAC
HVAC Connector End Views

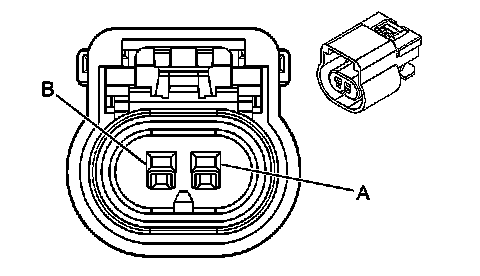

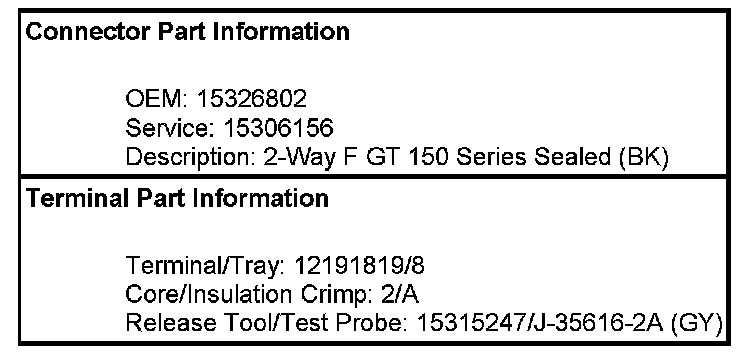

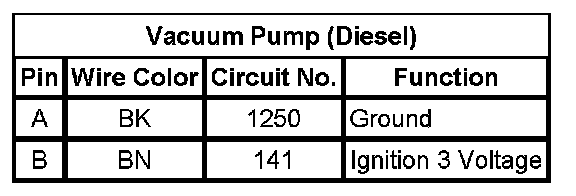

Vacuum Pump (Diesel)
