Home
>>
Chevy Truck
>>
2007
>>
Express 3500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C110
C110

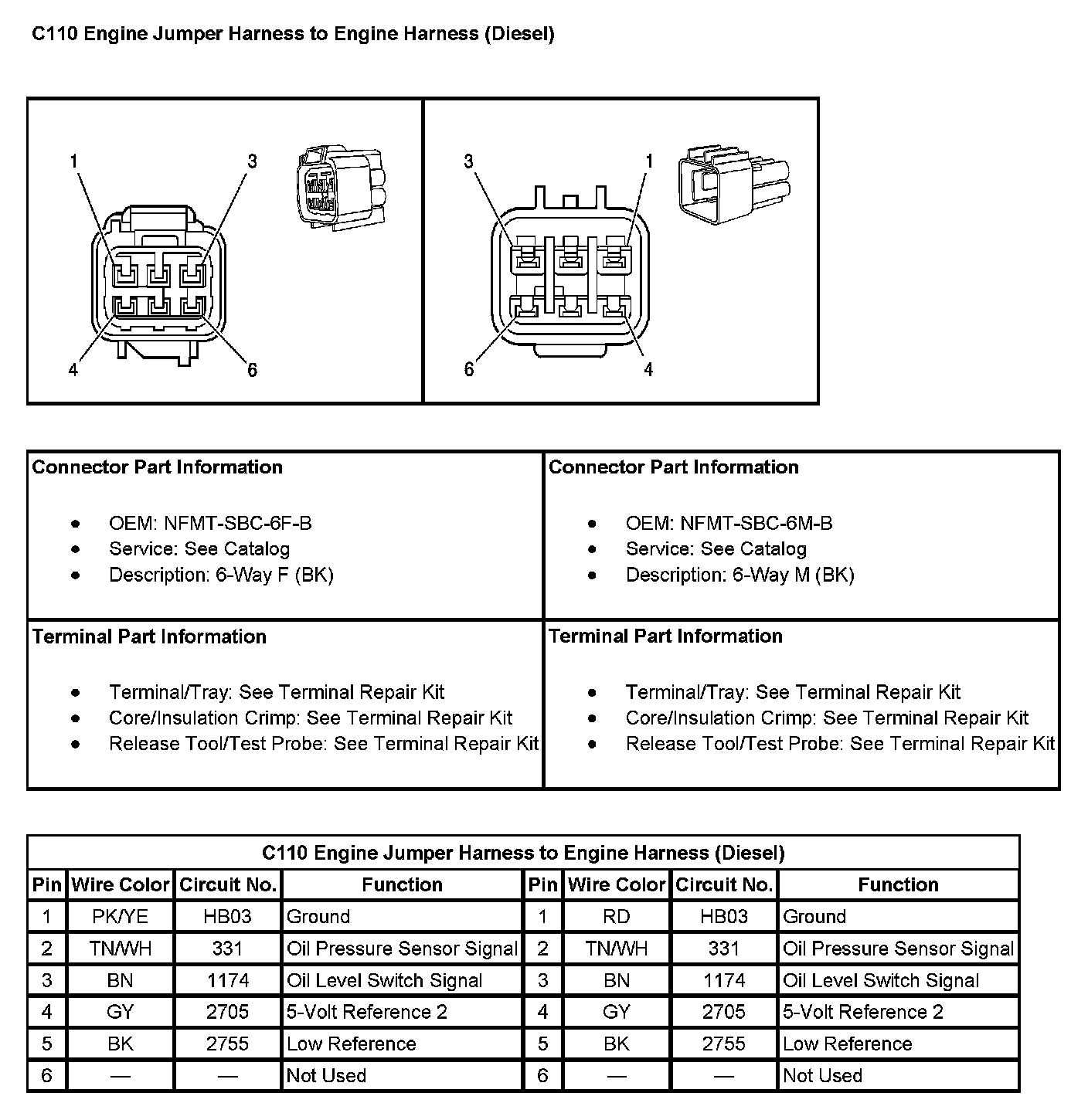

C110 Engine Jumper Harness To Engine Harness (Diesel):
