C101

C101 Chassis Harness To Engine Harness (With RPO Code JL4):



C101 Chassis Harness To Engine Harness (With RPO Code JL4):

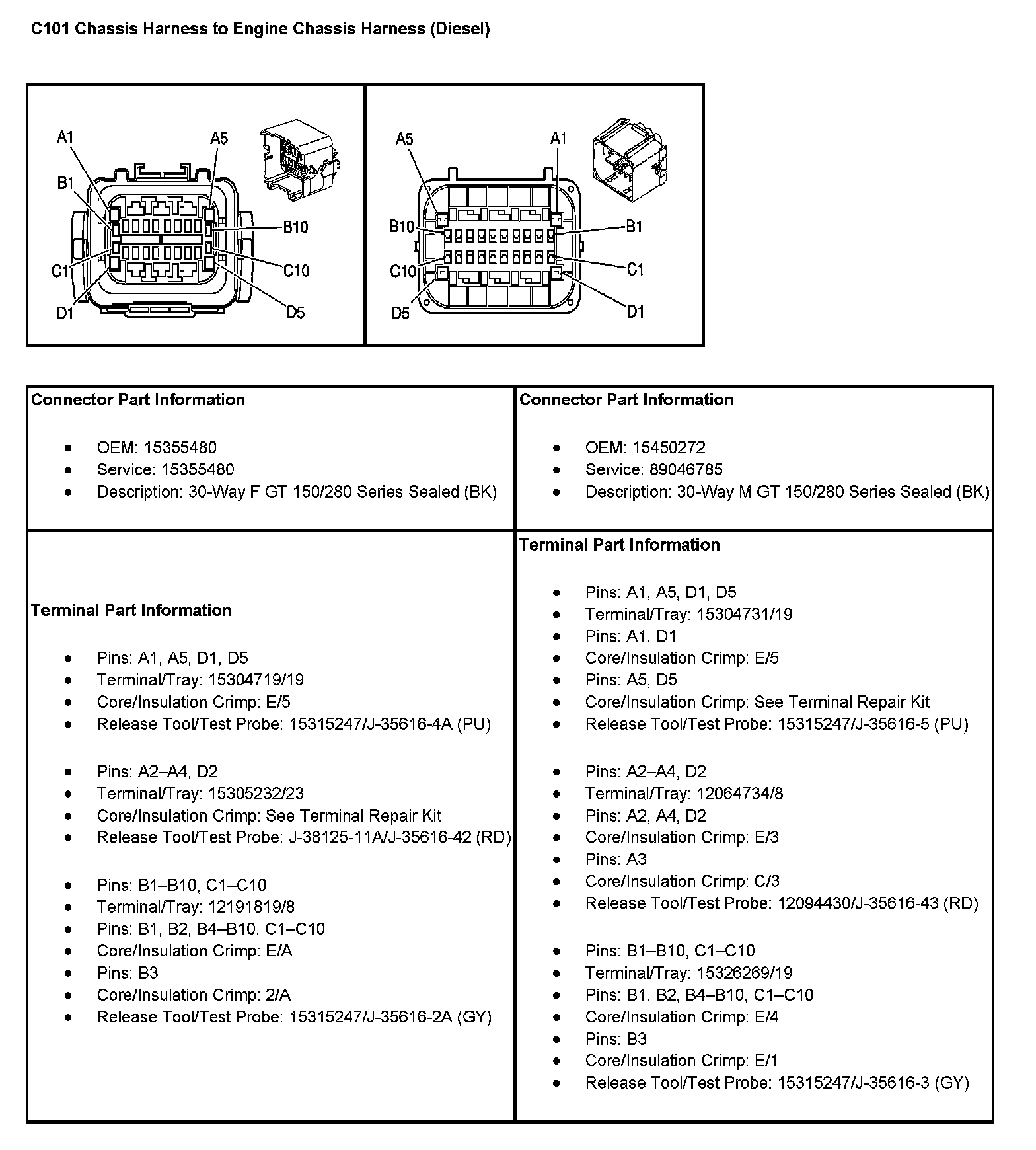

C101 Chassis Harness To Engine Chassis Harness (Diesel):

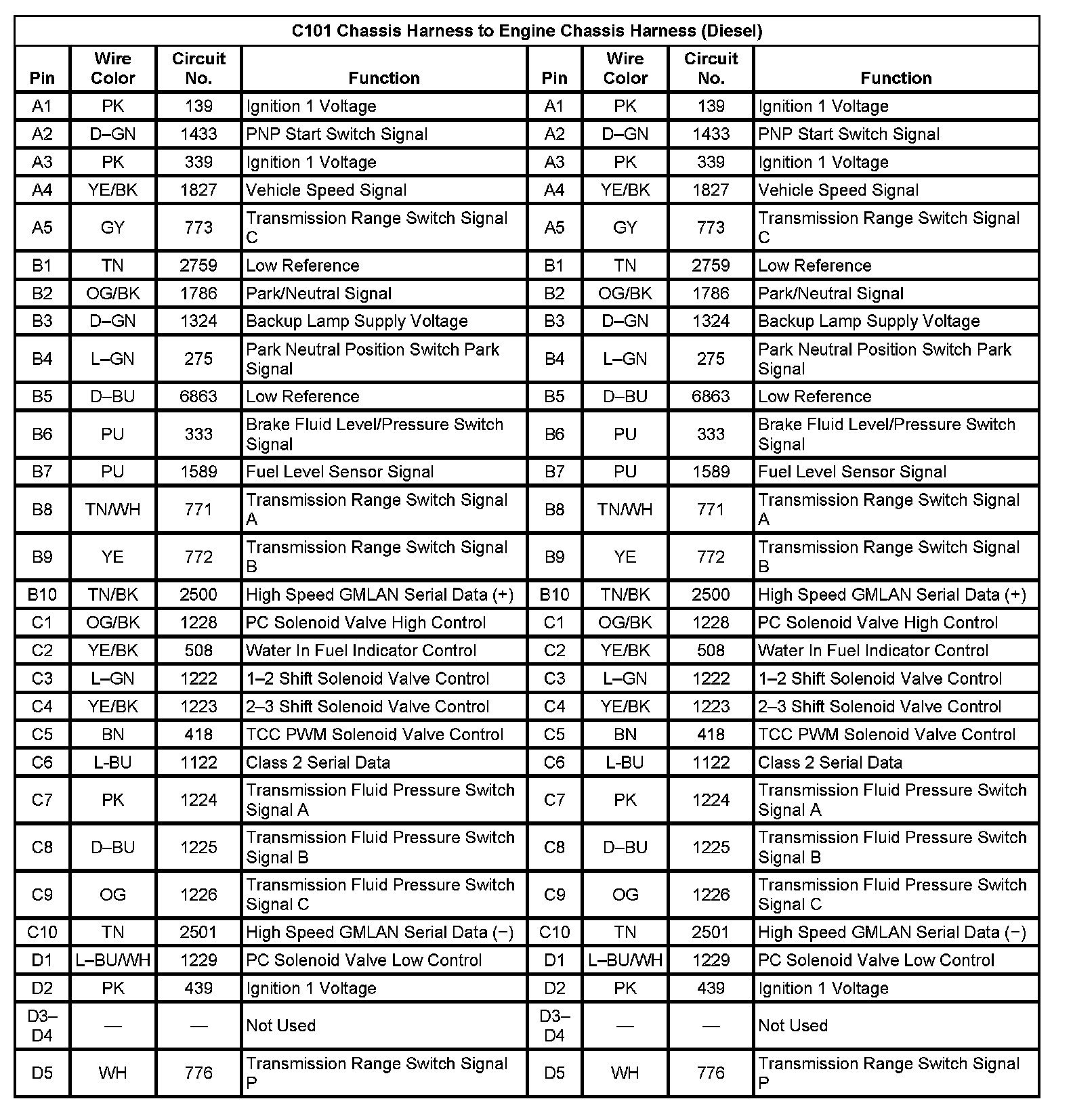

C101 Chassis Harness To Engine Chassis Harness (Diesel):
