Heater and Air Conditioning Control Vacuum Pump Replacement

Heater and Air Conditioning Control Vacuum Pump Replacement

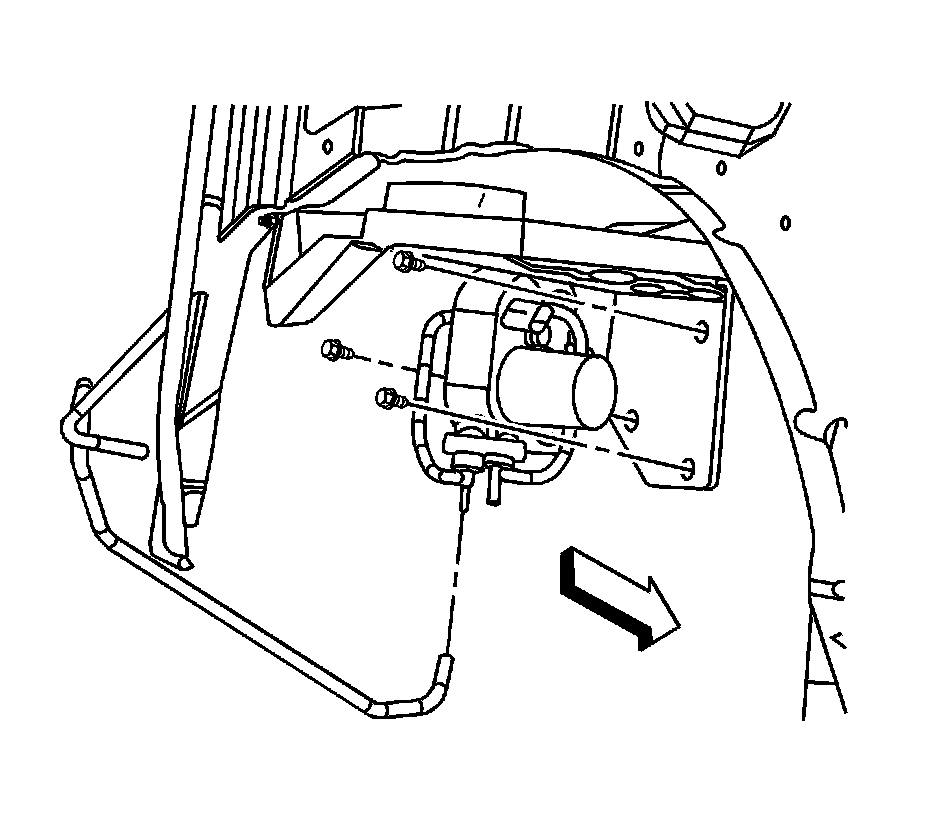

Removal Procedure

1. Remove the air cleaner assembly.
2. Disconnect the vacuum pump electrical connector.





3. Disconnect the vacuum hose from the vacuum pump.
4. Remove the vacuum pump retaining bolts.
5. Remove the vacuum pump from the vehicle.

Installation Procedure





1. Install the vacuum pump to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the vacuum pump retaining bolts.

Tighten the bolts to 3 N.m (27 lb in).

3. Connect the vacuum hose to the vacuum pump.
4. Connect the vacuum pump electrical connector.
5. Install the air cleaner assembly.
