Headlamp - High Beam
Headlamp - High Beam

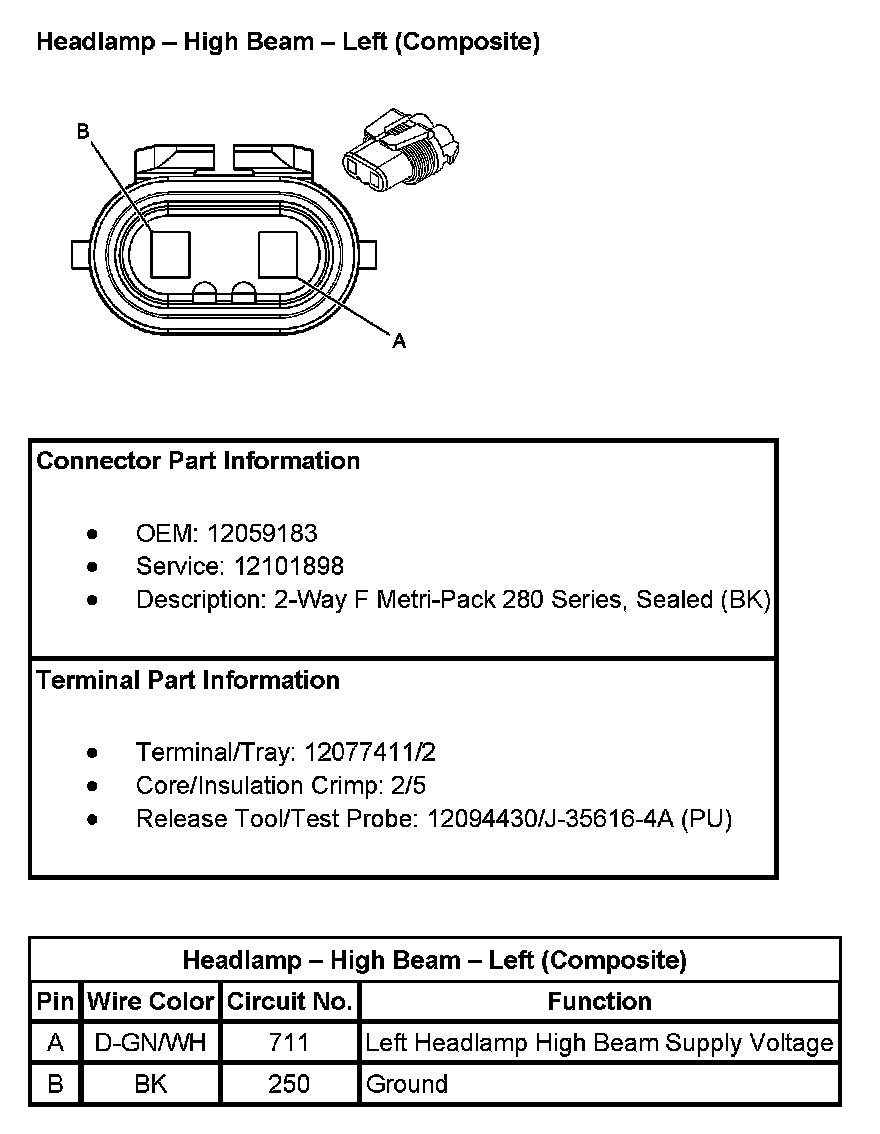

Headlamp - High Beam - Left (Composite):

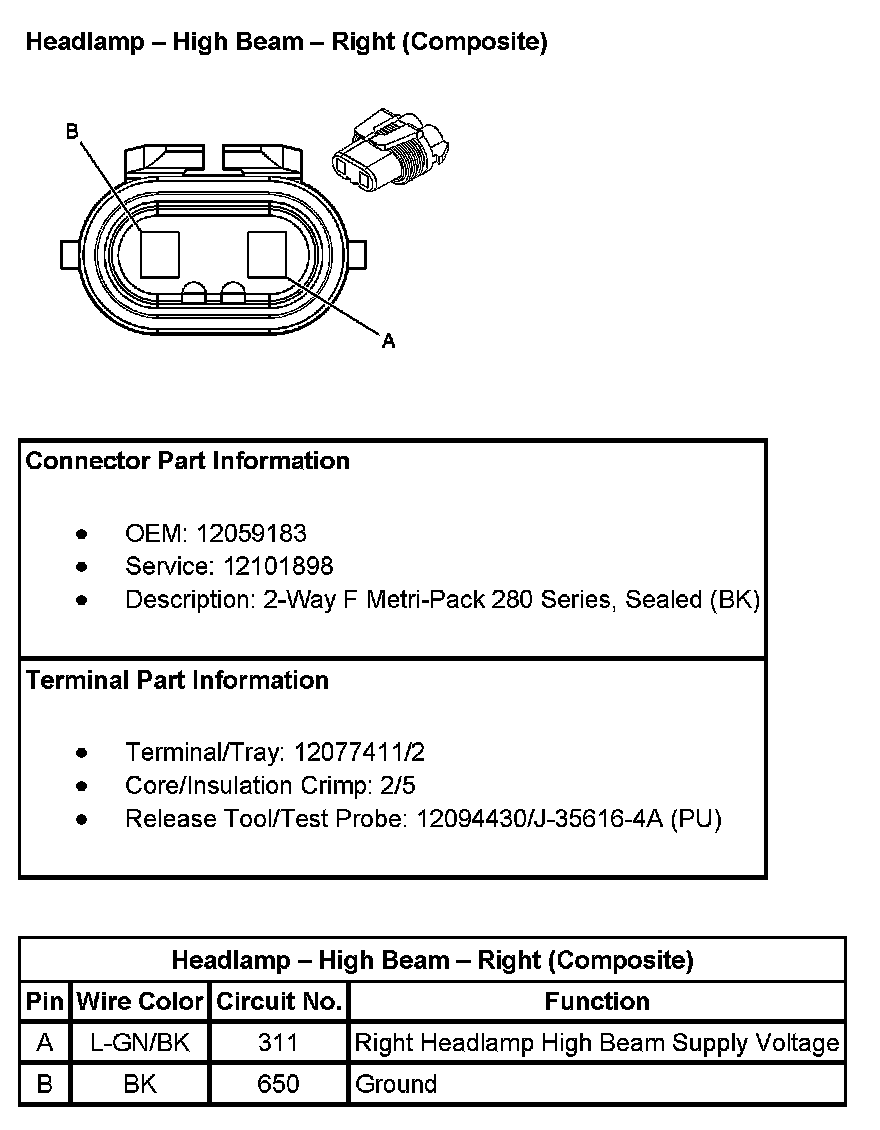

Headlamp - High Beam - Right (Composite):
