Seat Belt Height Adjuster: Service and Repair

Seat Belt Height Adjuster Replacement - Front

Removal Procedure

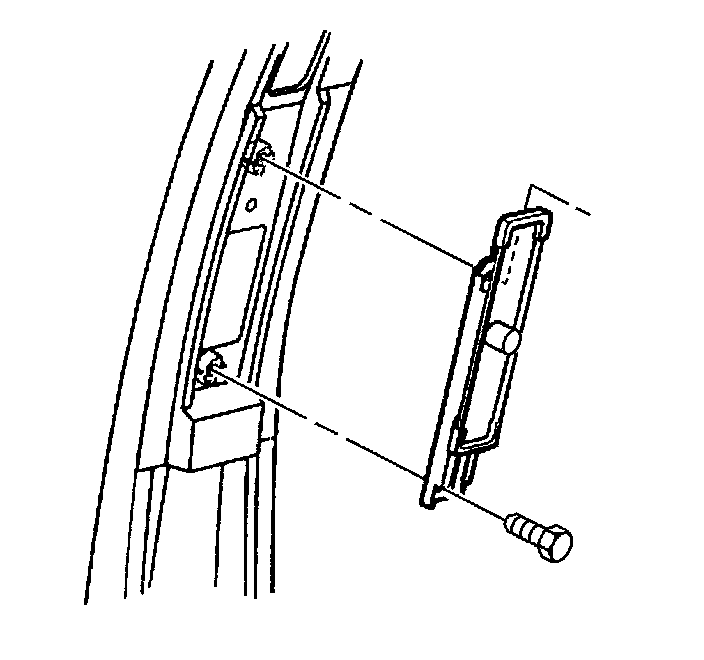

1. Using a flat bladed tool, remove the shoulder/seat belt guide to the guide trim cover (1).





2. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
3. Remove the shoulder/seat belt guide from the guide adjuster.
4. Remove the front door upper pillar garnish molding.





5. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
6. Remove the shoulder/seat belt guide adjuster from the vehicle.

Installation Procedure





1. Install the shoulder/seat belt guide adjuster to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the shoulder/seat belt guide adjuster retaining bolts to the pillar.

Tighten the shoulder/seat belt guide adjuster retaining bolts to 26 N.m (19 lb ft).





3. Install the shoulder/seat belt guide to the guide adjuster.
4. Install the shoulder/seat belt guide retaining bolt to the guide adjuster.

Tighten the shoulder/seat belt guide retaining bolt to 52 N.m (38 lb ft).

5. Install the front door upper pillar garnish molding.





6. Install the shoulder/seat belt guide to the guide adjuster cover (1).
