Side Window Defogger Outlet Duct Replacement - Right Side

Side Window Defogger Outlet Duct Replacement - Right Side

Removal Procedure

1. Remove the I/P trim pad.

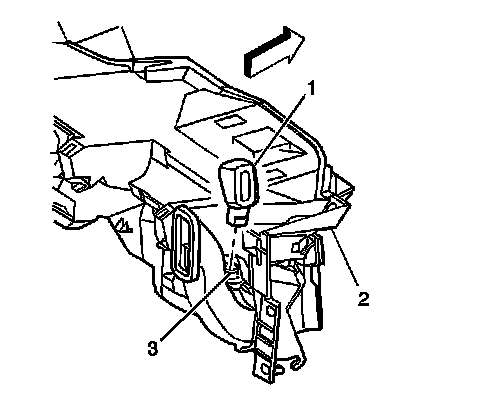

2. Remove the right window defogger duct (1) from the air distribution duct (3).

Installation Procedure





1. Install the right window defogger duct (1) to the air distribution duct (3).
2. Install the I/P trim pad.
