Mode Actuator Replacement - Upper



Mode Actuator Replacement - Upper

Removal Procedure

1. Remove the I/P carrier.

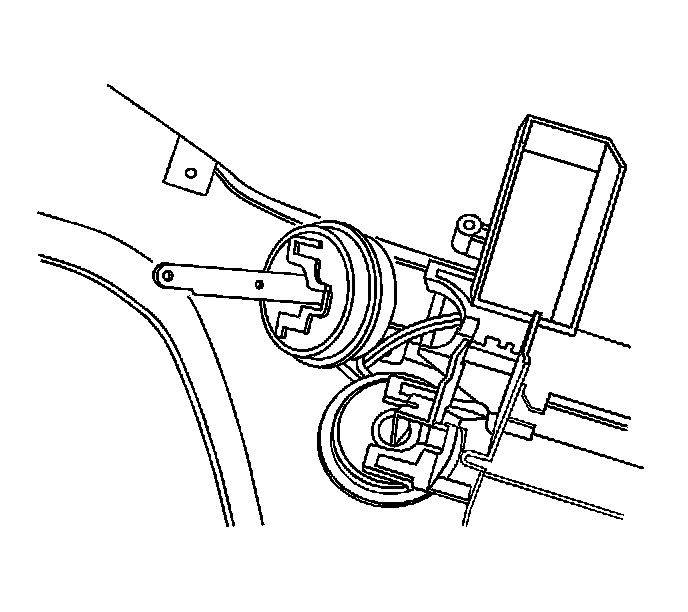

2. Release the tabs from the upper mode actuator.





3. Remove the upper mode actuator.

Installation Procedure





1. Install the upper mode actuator.
2. Press upper mode actuator on until you hear tabs engage.
3. Install the I/P carrier.
